YOKOGAWA NFAP135-S00 S2 Maintenance-Ready Spare CENTUM VP

YOKOGAWA NFAP135-S00 S2 Maintenance-Ready Spare CENTUM VP

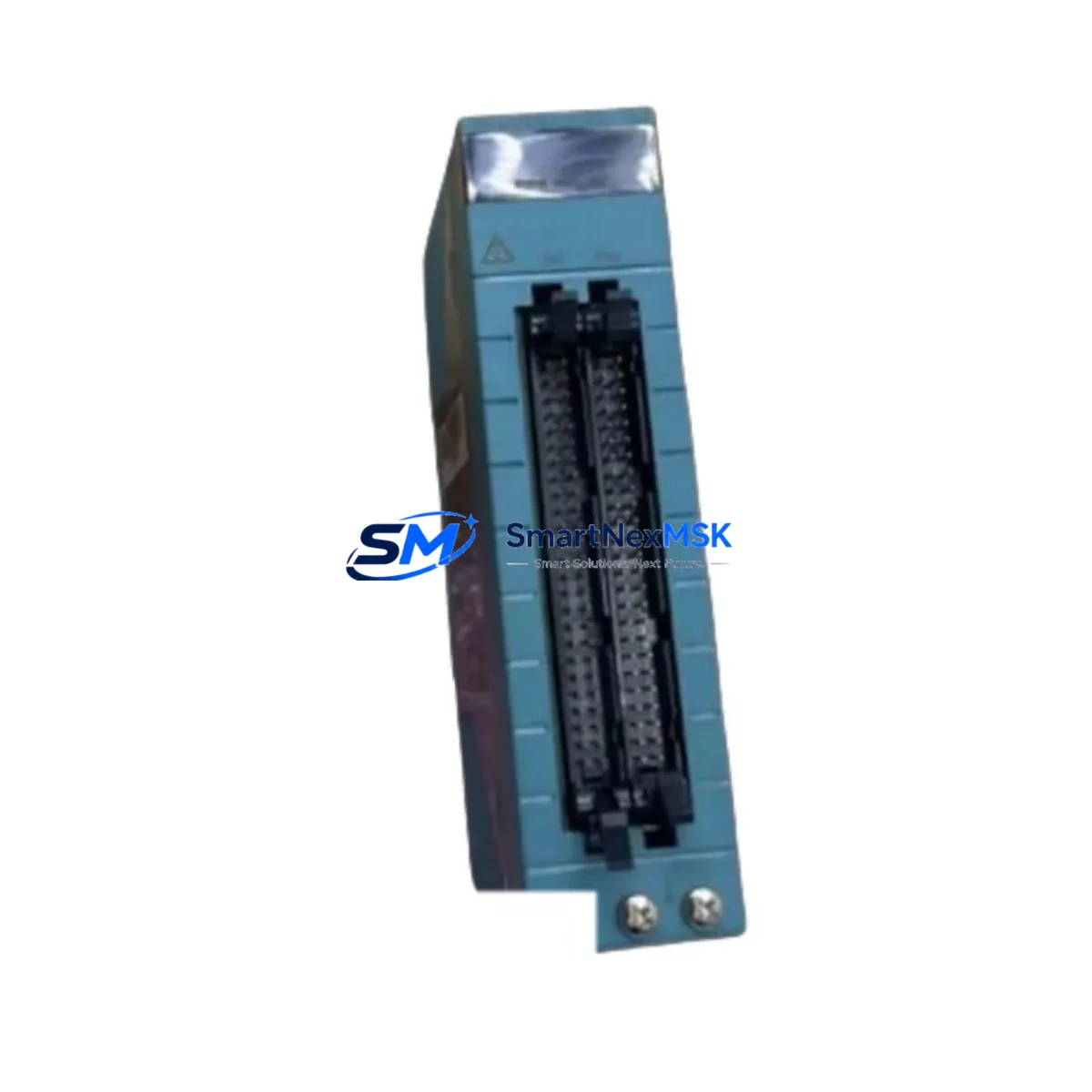

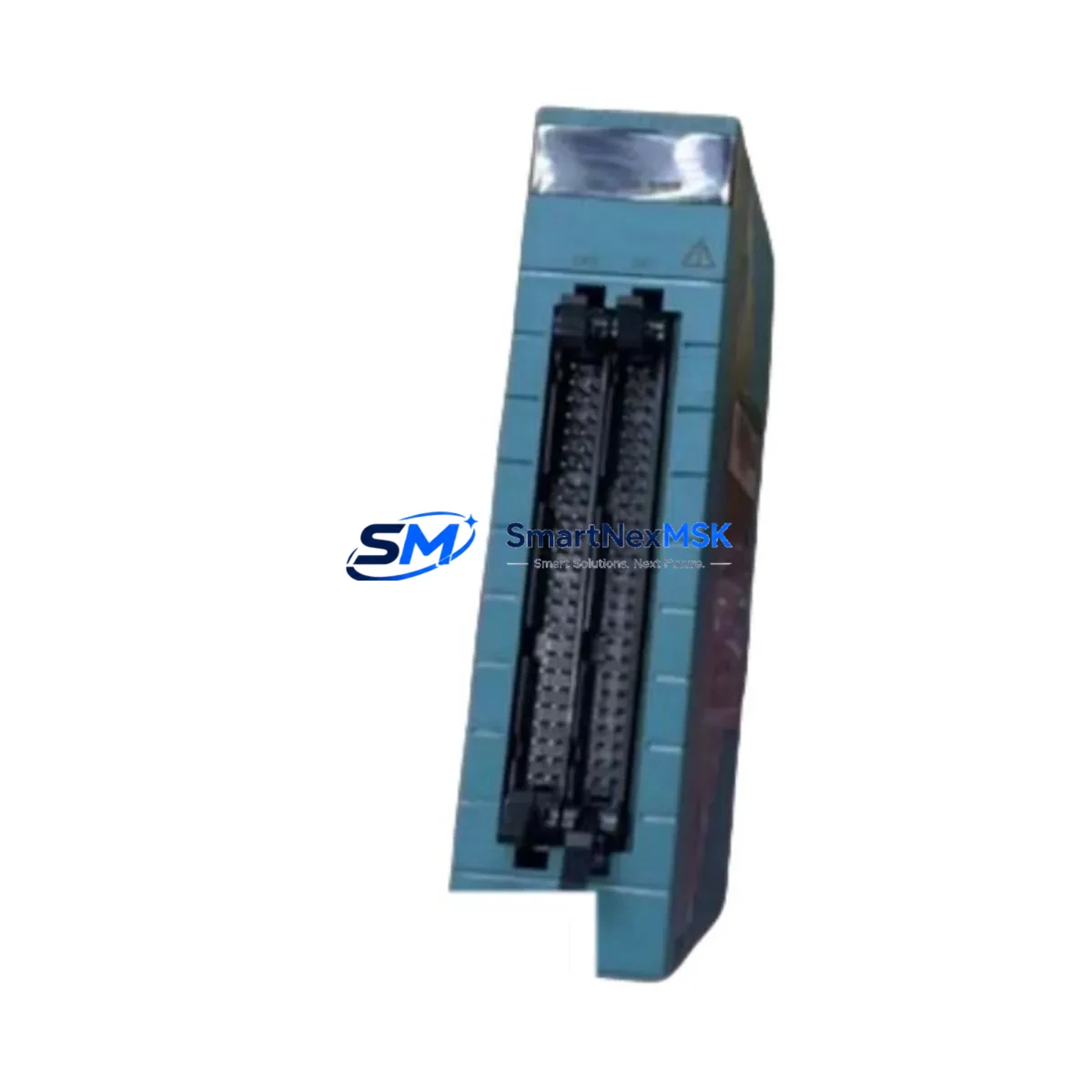

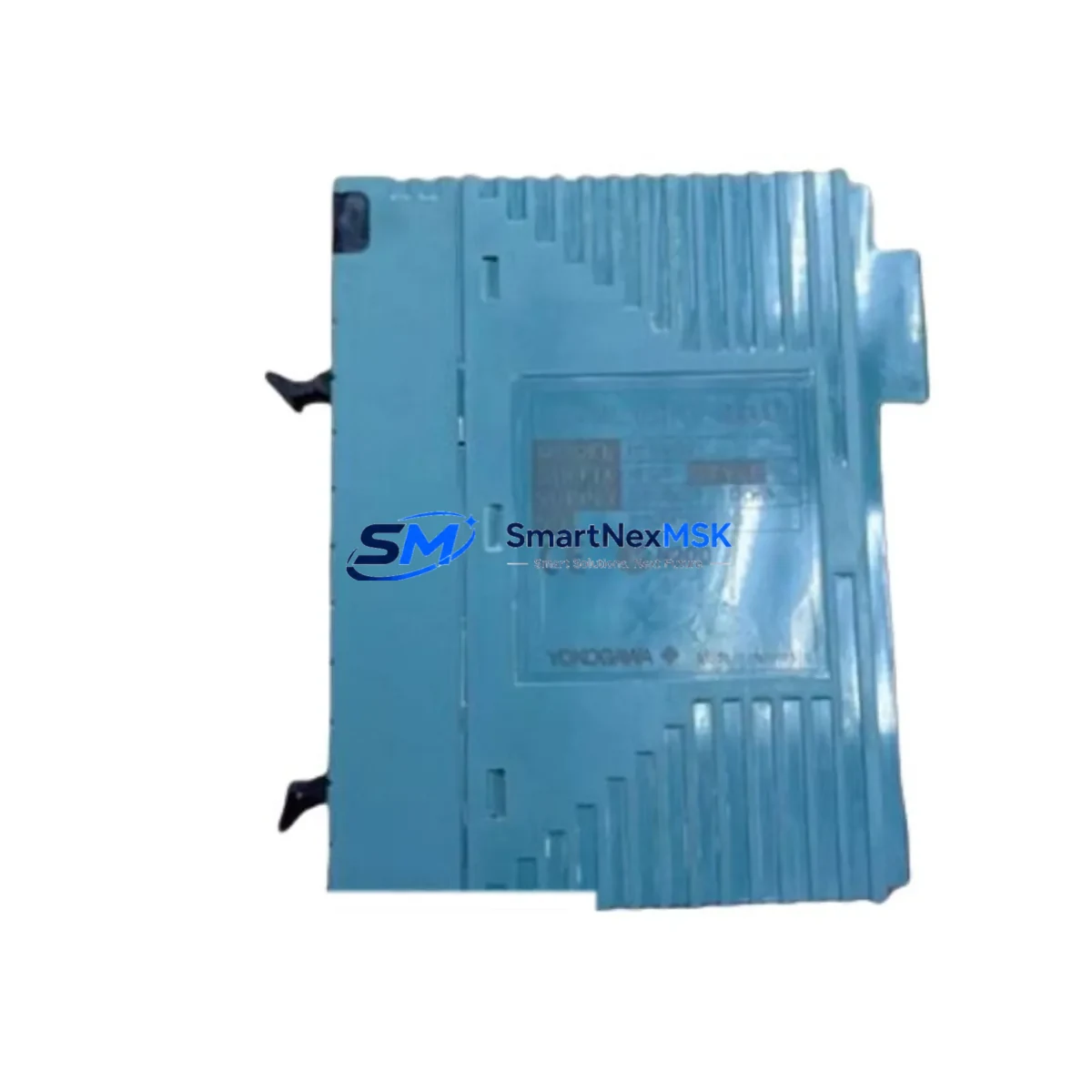

The YOKOGAWA NFAP135-S00 S2 is an original DCS pulse input module designed for CENTUM VP distributed control systems. In industrial facilities where continuous process control is non-negotiable, unplanned downtime caused by a failed pulse input module can cascade into production losses, safety incidents, and costly emergency procurement. Stocking the NFAP135-S00 S2 as a verified spare ensures your maintenance team can execute rapid module swap-outs and restore system integrity within a single maintenance window.

This module is engineered to interface directly with CENTUM VP field control stations, accepting pulse signals from flow meters, turbine meters, and rotary encoders commonly deployed in oil & gas, chemical, power generation, and water treatment plants. Its original factory configuration ensures full compatibility with existing I/O bus architecture, eliminating the risk of signal mapping errors or firmware conflicts that often arise with non-original substitutes.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including pulse signal acquisition testing, channel isolation checks, and communication handshake validation with CENTUM VP controller nodes. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to a CENTUM VP system alarm, the NFAP135-S00 S2 is rarely the only component requiring attention. A disciplined spare parts strategy accounts for the full electrical and signal chain surrounding the pulse input module.

During a control cabinet inspection, engineers should simultaneously verify the condition of the NFAP111 or NFAP121 analog input modules installed in adjacent slots, as shared backplane power distribution can mask intermittent faults across multiple I/O nodes. The AFV10D or AFV30D field control unit (FCU) that hosts the NFAP135-S00 S2 should be checked for firmware version alignment and node communication health via the CENTUM VP engineering workstation.

Power integrity is critical: the NFBU100 or equivalent node unit power supply module should be inspected for output voltage stability, particularly in aging installations where capacitor degradation can introduce ripple that affects pulse counting accuracy. Terminal blocks and field wiring connected to the pulse input channels — typically sourced from turbine flow meters or magnetic pickup sensors — should be inspected for corrosion, loose terminations, and shield grounding continuity.

For facilities running CENTUM VP with Vnet/IP communication, the LFCP701 or LFCP702 pair controller cards and associated ESB10D bus coupler modules should be included in the same maintenance cycle. Signal isolators installed between field devices and the NFAP135-S00 S2 input channels — such as loop-powered pulse isolators or frequency converters — are often overlooked but are a common source of intermittent pulse count errors.

Fuse holders and miniature circuit breakers protecting the 24 VDC field power rail, along with any NFAI143 or NFAI135 I/O modules sharing the same node, should be tested during the same maintenance window to avoid repeat call-outs. Maintaining a minimum of one spare NFAP135-S00 S2 per control room, alongside spares for the FCU power supply and at least one analog input module, is the recommended inventory posture for facilities with more than 10 CENTUM VP nodes.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the NFAP135-S00 S2 replacement unit matches the installed revision suffix (S2) and hardware generation. Cross-reference the module label against the CENTUM VP I/O builder configuration to ensure channel assignments are identical before powering down the node.

Step 2 — Safe isolation: Place the affected field control station into manual mode via the CENTUM VP HIS (Human Interface Station) operator console. Notify the process control team and document the isolation in the maintenance management system. De-energize the node unit following YOKOGAWA lockout/tagout procedures.

Step 3 — Module extraction and installation: Remove the faulty NFAP135-S00 S2 by releasing the module locking lever and sliding it clear of the backplane connector. Insert the replacement unit, ensuring full backplane engagement. Restore node power and observe the module status LED sequence — a solid green indicates successful initialization.

Step 4 — Functional validation: From the CENTUM VP engineering workstation, confirm that all pulse input channels are reporting correctly. Verify pulse counts against field device readings (flow meter local display or SCADA historian) to confirm signal integrity. Document the replacement in the asset management system and update the spare parts inventory record.

Step 5 — Return to service: Transfer the field control station back to automatic mode. Monitor the process variable trends for a minimum of 15 minutes to confirm stable operation before closing the work order.

Spare Parts Support FAQ

Q1: Is the NFAP135-S00 S2 compatible with CENTUM CS 3000 systems?
The NFAP135-S00 S2 is primarily designed for CENTUM VP field control stations. Compatibility with CENTUM CS 3000 depends on the specific node unit generation and hardware revision. We recommend providing your FCU model number and system revision for compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every NFAP135-S00 S2 unit undergoes functional verification including pulse signal acquisition testing across all input channels, backplane connector inspection, and communication initialization checks. A test report is available upon request. All units are shipped with ESD-protective packaging.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions as specified by YOKOGAWA. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q4: How quickly can the NFAP135-S00 S2 be shipped for emergency maintenance?
In-stock units are available for same-day or next-business-day dispatch. For urgent requirements, contact our team directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and arrange priority shipping to your site.
