YOKOGAWA NFAR181-S00 S2 Retrofit-Ready Analog Input Module

YOKOGAWA NFAR181-S00 S2 Retrofit-Ready Analog Input Module for CENTUM VP & CS 3000 Control Systems

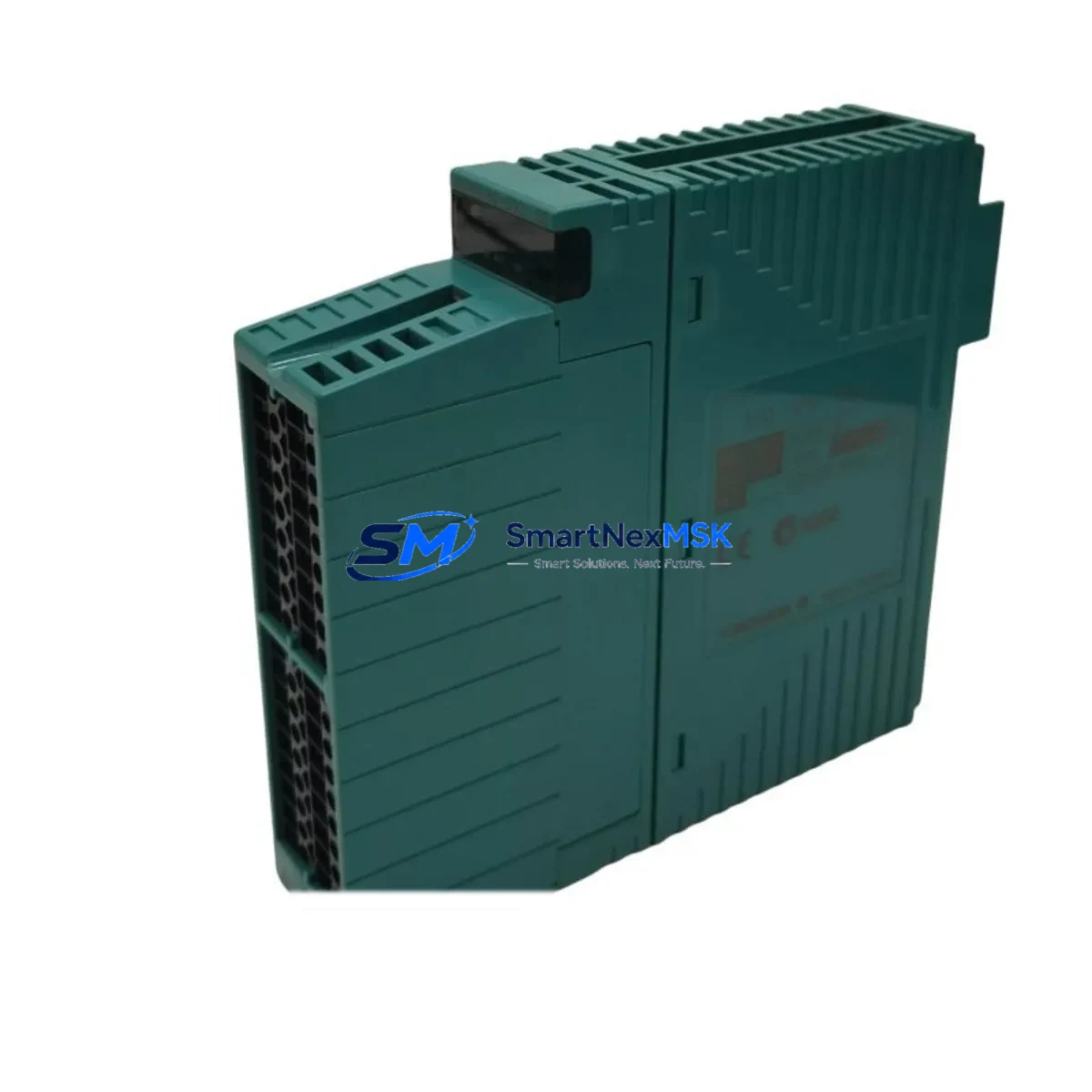

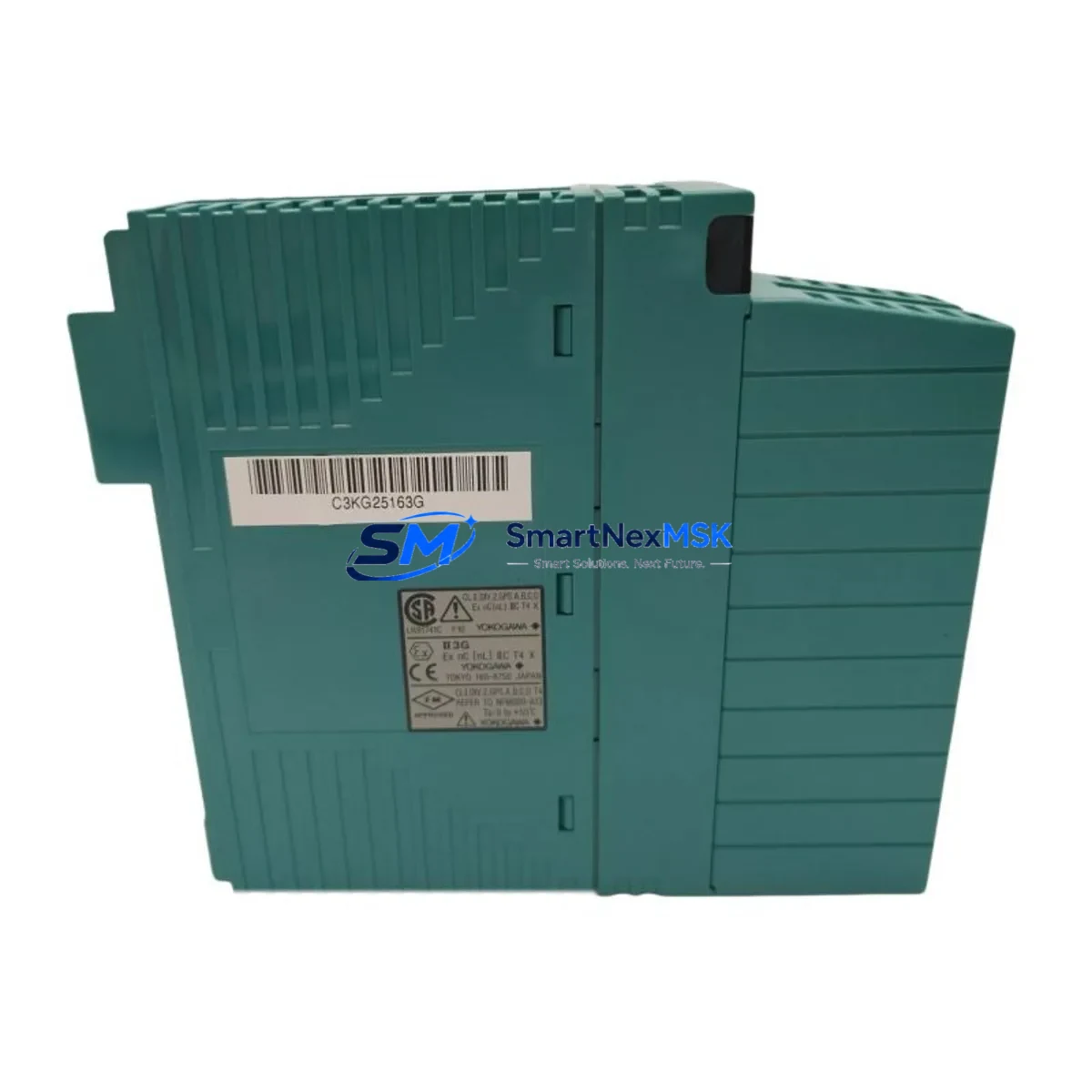

The YOKOGAWA NFAR181-S00 S2 is a field-proven DCS analog input module designed for seamless integration into CENTUM VP and CS 3000 distributed control system architectures. As legacy automation infrastructure ages and OEM support for discontinued components becomes increasingly scarce, the NFAR181-S00 S2 has emerged as a critical retrofit solution for process plants, power generation facilities, chemical complexes, and oil & gas installations seeking to extend the operational life of their existing control platforms without committing to a full system overhaul.

This module supports 16-channel analog input with configurable signal ranges, making it directly compatible with the CENTUM VP field control station (FCS) backplane architecture. Engineers undertaking a control system modernization project will find that the NFAR181-S00 S2 preserves existing I/O wiring terminations, reducing field rewiring costs and minimizing the risk of signal integrity issues during cutover. The module slots into standard YOKOGAWA node unit racks, including the ANB10D and ANB10S series, without requiring mechanical modification to the control cabinet.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on site. When planning the replacement of a failed or end-of-life NFAR181-S00 in a live CENTUM VP or CS 3000 system, the engineering team must conduct a thorough pre-installation audit covering power budget, terminal wiring, backplane slot allocation, and software configuration.

Power Budget Verification: The node unit power supply — typically a PW481 or PW482 series unit — must have sufficient headroom to support the NFAR181-S00 S2 alongside other installed modules such as NFBR181 (analog output), NFDV141 (digital input), and NFDO141 (digital output) cards sharing the same rack. Overloading the power supply is a common cause of intermittent module faults in aging control cabinets. Always calculate total current draw across all populated slots before proceeding.

Terminal Wiring and Field Instrument Compatibility: The NFAR181-S00 S2 uses the same terminal block pinout as its predecessor, which means existing marshalling cabinet wiring and junction box connections can typically be retained without modification. However, engineers should verify that field transmitters — including pressure transmitters, temperature transmitters with 4–20 mA output, and flow measurement devices — are operating within the module’s input impedance specifications. If the site uses HART-enabled field devices, confirm whether the HART pass-through function is required and whether the CENTUM VP FCS configuration supports HART communication on this I/O slot.

Backplane Slot and Module Address Configuration: In the CENTUM VP Engineering Environment (ENG), each I/O module is assigned a node address and slot number that maps directly to process tags in the control database. When replacing the NFAR181-S00 S2, the slot address must match the original configuration exactly to avoid tag mapping errors. If the original module address is unknown due to lost documentation, the FCS hardware configuration can be read back from the controller using the CENTUM VP Builder tool. For CS 3000 systems, the equivalent procedure uses the CS 3000 Engineering Environment.

Program and Logic Compatibility: Unlike a full platform migration — such as moving from CS 3000 to CENTUM VP or integrating a STARDOM FCN/FCJ controller — replacing a like-for-like analog input module does not require changes to function block logic, PID loop parameters, or alarm management settings. The existing control strategy, including cascade loops, ratio controls, and interlock logic referencing the affected I/O tags, remains intact. This is one of the key advantages of sourcing a genuine NFAR181-S00 S2 replacement rather than attempting a cross-platform I/O substitution.

HMI and Operator Interface Considerations: Process graphics on the CENTUM VP HIS (Human Interface Station) or legacy CS 3000 operator stations reference tag names, not physical hardware addresses. Provided the module slot address is correctly restored, HMI faceplates, trend displays, and alarm summary screens will resume normal operation without modification. If the site uses a third-party SCADA system communicating via OPC DA or OPC UA over the Vnet/IP network, verify that the OPC server configuration does not require a manual refresh after the module swap.

Communication Link Integrity: The NFAR181-S00 S2 communicates with the FCS processor via the YOKOGAWA internal node bus. Before installation, inspect the backplane connector on both the module and the rack for contamination, bent pins, or corrosion — particularly in humid or chemically aggressive environments. In redundant FCS configurations, the module replacement can often be performed on the standby controller first, followed by a controlled switchover, to maintain continuous process control throughout the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team replacing critical I/O modules in a live production environment. The NFAR181-S00 S2 supports a structured cold-swap procedure that, when properly planned, can be completed within a single scheduled maintenance window — typically two to four hours for an experienced YOKOGAWA-certified engineer.

The recommended sequence begins with a full backup of the FCS configuration using the CENTUM VP Engineering Environment, exported to a secure offline storage location. This backup preserves all function block parameters, I/O assignments, tuning constants, and alarm setpoints, providing a recovery baseline in the event of an unexpected complication during the swap. For CS 3000 systems, the equivalent backup is performed using the CS 3000 Engineering Environment project archive function.

Prior to removing the failed module, place all affected control loops in manual mode at the operator station. This prevents the FCS from generating spurious output signals to final control elements — such as control valves, variable speed drives, or motor starters — during the period when the analog input data is unavailable. Document the current process values and controller outputs before switching to manual, so operators can maintain approximate process conditions during the outage.

Once the NFAR181-S00 S2 is installed and the system is powered, use the CENTUM VP Test Function to simulate input signals channel by channel before reconnecting field wiring. This step confirms that the module is communicating correctly with the FCS and that all 16 channels are reading within expected engineering unit ranges. Only after a successful bench-level loop check should field wiring be reconnected and control loops returned to automatic mode.

For sites with redundant control architectures — including dual FCS configurations or systems with a YOKOGAWA CENTUM VP R6 redundancy package — the migration can be structured as a rolling replacement, eliminating the need for a full process shutdown. In these cases, coordinate with the site DCS engineer and the operations team to schedule the switchover during a period of stable process conditions, and ensure that the standby controller has been verified as fully operational before initiating the transfer.

All replacement modules supplied by SMARTNEXMSK undergo pre-shipment functional testing to verify channel accuracy, communication integrity, and hardware revision compliance. This reduces the risk of receiving a non-functional unit and helps compress the on-site commissioning timeline. Each unit ships with a 12-month warranty covering manufacturing defects, providing assurance for both planned maintenance and emergency breakdown scenarios.

Retrofit Support FAQ

Q1: Is the NFAR181-S00 S2 a direct drop-in replacement for earlier NFAR181-S00 revisions?
Yes. The S2 hardware revision is backward compatible with earlier NFAR181-S00 variants and installs into the same backplane slot without requiring changes to the FCS configuration, wiring terminations, or control logic. The S2 designation reflects internal hardware improvements by YOKOGAWA and does not affect the module’s external interface or software behavior.

Q2: What pre-shipment testing is performed on each unit?
Each NFAR181-S00 S2 supplied by SMARTNEXMSK is functionally tested prior to dispatch. Testing covers power-on self-diagnostics, channel-level signal verification, and communication bus integrity checks. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in a CS 3000 system as well as CENTUM VP?
Yes. The NFAR181-S00 S2 is compatible with both CENTUM VP and CS 3000 distributed control platforms, subject to firmware version compatibility at the FCS level. Customers migrating from CS 3000 to CENTUM VP as part of a broader system upgrade should consult the YOKOGAWA migration guide to confirm module compatibility across the transition architecture.

Q4: What information should I provide when placing an order to ensure I receive the correct module?
Please provide the full part number (NFAR181-S00 S2), the target platform (CENTUM VP or CS 3000), and the FCS firmware version if known. For urgent breakdown orders, also indicate the required delivery timeline so our team can confirm stock availability and arrange priority dispatch. Contact us at sales@smartnexmsk.com or +86 18259474341 for immediate assistance.
