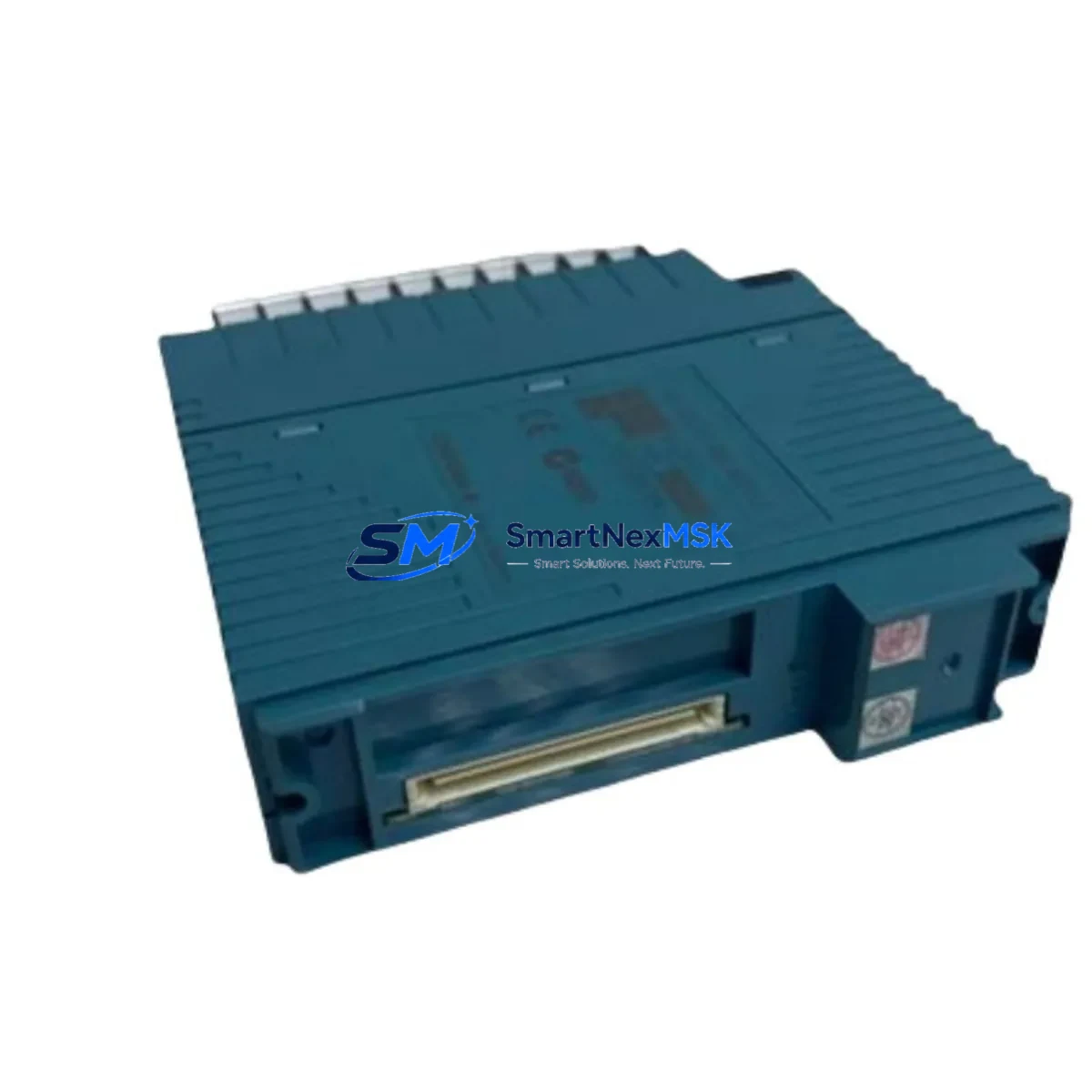

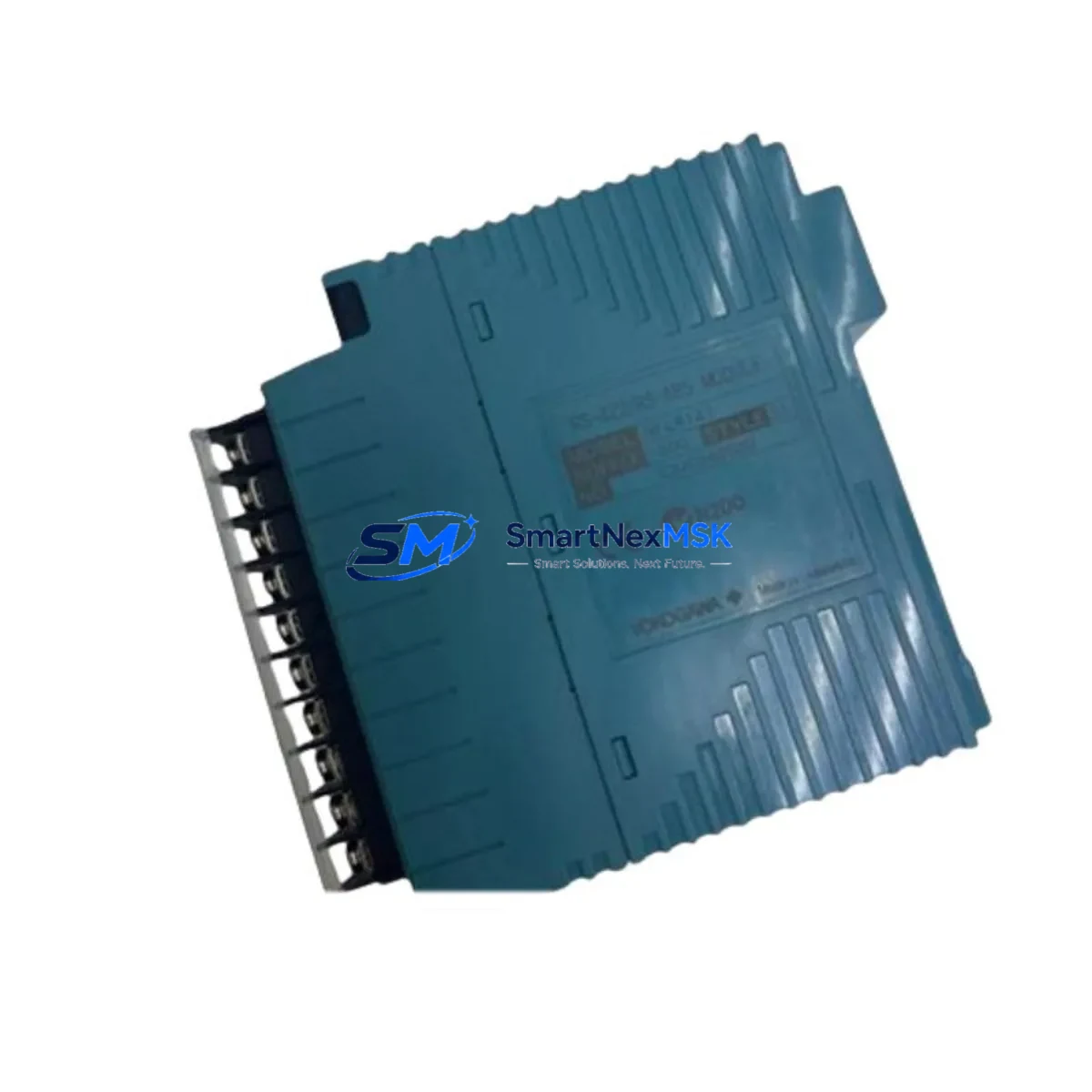

The YOKOGAWA NFLR121-S00 S1 is an original serial interface module designed for the CENTUM VP Field Control Station (FCS). In industrial automation environments where unplanned downtime translates directly into production loss, maintaining a verified spare of this module is a fundamental element of any responsible maintenance strategy. Whether you are managing a petrochemical plant, a power generation facility, or a continuous process manufacturing line, the NFLR121-S00 S1 plays a critical role in sustaining reliable serial communication between the FCS and field devices or subsystems.

This module supports RS-232C and RS-422/485 serial protocols, enabling the CENTUM VP FCS to interface with third-party devices, legacy instrumentation, and serial-based field equipment. When this module fails or degrades, the entire communication loop it supports goes offline — often triggering cascading alarms, loss of process visibility, and emergency shutdowns. Keeping a tested, ready-to-deploy spare on the shelf is the most effective way to minimize mean time to repair (MTTR) and restore normal operation quickly.

From a maintenance engineering perspective, the NFLR121-S00 S1 should be treated as a Tier-1 critical spare — one that is inspected during every scheduled control cabinet walkthrough, verified for firmware compatibility during annual system audits, and replaced proactively at the first sign of communication errors, CRC faults, or intermittent signal loss. Procurement engineers should ensure that at least one unit is held in the site spare parts store, with a second unit on order to maintain buffer stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault in the NFLR121-S00 S1, the replacement workflow should not stop at the module itself. A thorough site investigation is essential to rule out upstream and downstream causes that may have contributed to the failure or that may cause the replacement unit to fail prematurely.

Begin by inspecting the CENTUM VP FCS power supply module (such as the NFLP011 or NFLP021 series) to confirm that the backplane bus voltage is within specification. An under-voltage or ripple condition on the 5V or 24V rail is a common root cause of serial module degradation. Next, check the FCS I/O node backplane (NFBU series) for physical damage, oxidized connector pins, or loose seating — a poor backplane connection can cause intermittent communication faults that are often misdiagnosed as module failure.

Review the CENTUM VP ESB bus coupler and associated EB401 or EB501 ESB bus cables for continuity and shielding integrity. Serial communication errors frequently originate from degraded bus cables rather than the interface module itself. If the NFLR121-S00 S1 is connected to a third-party device via RS-485, inspect the terminal block assemblies (such as YOKOGAWA TB series or equivalent DIN-rail terminal strips) for loose wiring, corrosion, or incorrect termination resistor settings.

For systems where the serial interface feeds data to an HMI station or CENTUM VP HIS (Human Interface Station), verify that the HIS communication settings match the updated module configuration after replacement. In older CENTUM VP installations, also check the NFCP100 or NFCP101 communication processor modules for firmware version compatibility with the replacement NFLR121-S00 S1.

If the control cabinet houses signal isolators (such as YOKOGAWA MTL or equivalent DIN-rail isolators) between the serial module and field devices, test each isolator for correct signal pass-through after the module swap. Finally, inspect any surge protection devices or fuse terminal blocks on the serial signal lines — these are often overlooked during fault isolation but are a common point of failure in environments with frequent electrical transients.

Site Replacement Workflow

Replacing the NFLR121-S00 S1 on a live CENTUM VP system requires careful sequencing to avoid extended downtime and to ensure system stability after the swap. Follow this recommended workflow:

Step 1 — Pre-replacement verification: Confirm the replacement unit’s part number, suffix revision (S1), and firmware version against the system’s current configuration record. Mismatched suffix revisions can cause initialization errors on the FCS.

Step 2 — Backup and documentation: Export the current FCS configuration from CENTUM VP Engineering Environment (CAMS for HIS or System View) before any hardware change. Record all serial port parameters: baud rate, parity, stop bits, and device address assignments.

Step 3 — Controlled shutdown of the affected I/O node: Where hot-swap is not supported, coordinate with the operations team to place the affected control loops in manual mode before powering down the I/O node. This prevents process upsets during the module exchange.

Step 4 — Physical replacement: Remove the faulty NFLR121-S00 S1 from the backplane slot, insert the replacement unit, and verify secure seating. Power up the I/O node and observe the module status LEDs for normal initialization sequence.

Step 5 — Communication verification: From the CENTUM VP HIS, confirm that the serial communication link is re-established, device data is updating correctly, and no fault alarms remain active. Return all control loops to automatic mode only after full communication is confirmed.

This structured approach minimizes downtime, reduces the risk of secondary faults, and ensures that the replacement is fully documented for future maintenance records.

Spare Parts Support FAQ

Q1: Is the NFLR121-S00 S1 compatible with both CENTUM VP R5 and R6 systems?
The NFLR121-S00 S1 is designed for the CENTUM VP platform. Compatibility with specific revision levels (R5, R6) depends on the FCS firmware version and the I/O node generation installed at your site. We recommend providing your FCS model number and software revision when ordering so we can confirm compatibility before shipment.

Q2: How is each unit tested before shipment?
Every NFLR121-S00 S1 unit undergoes functional testing prior to dispatch, including power-on initialization verification and communication port continuity checks. A test report is available upon request. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched after the faulty unit is returned and inspected.

Q4: How quickly can a replacement unit be shipped for an emergency breakdown?
For emergency breakdown situations, we prioritize same-day or next-business-day dispatch for in-stock units. Express shipping via DHL or FedEx is available to most industrial regions worldwide. Contact our team directly with your site location and urgency level to arrange expedited delivery.
