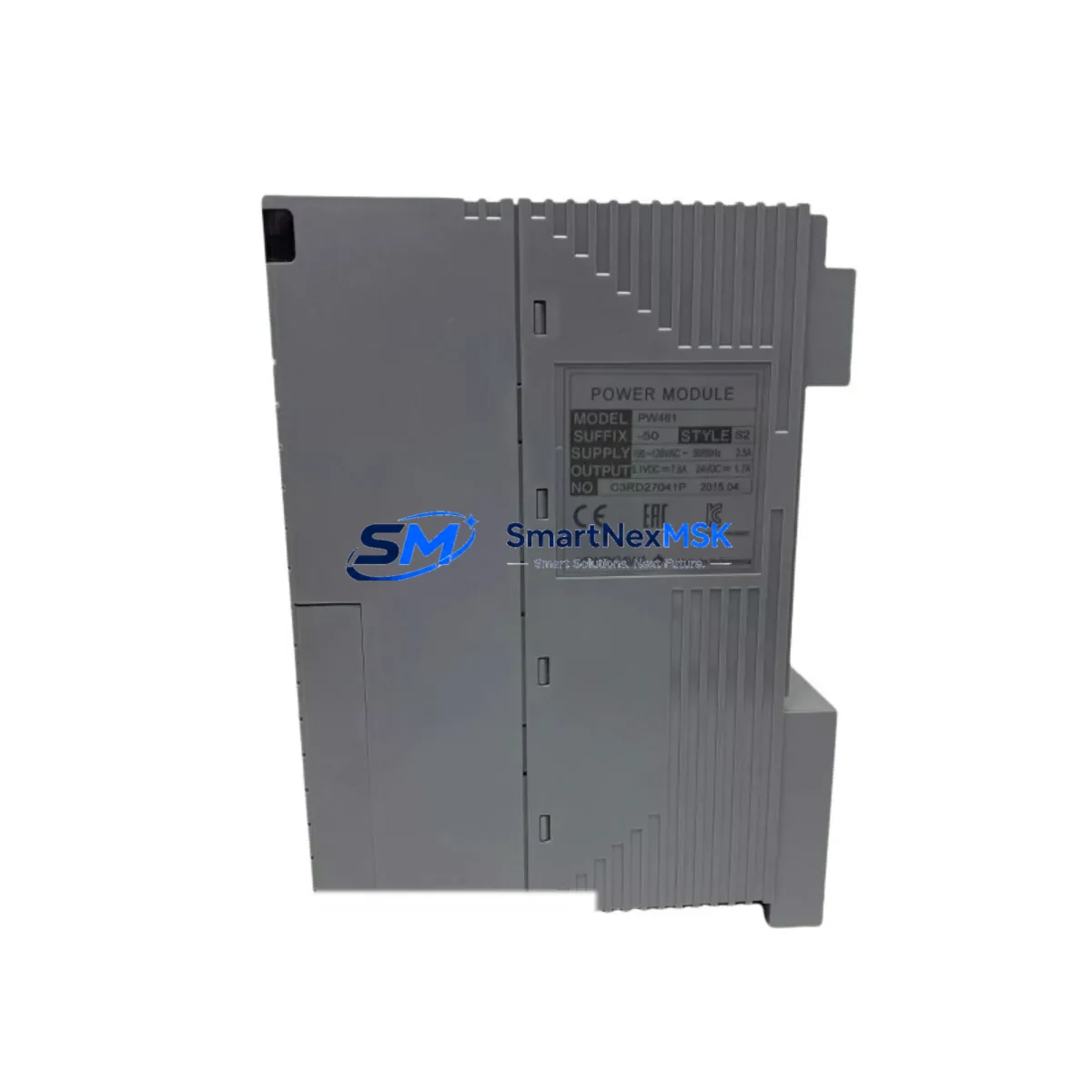

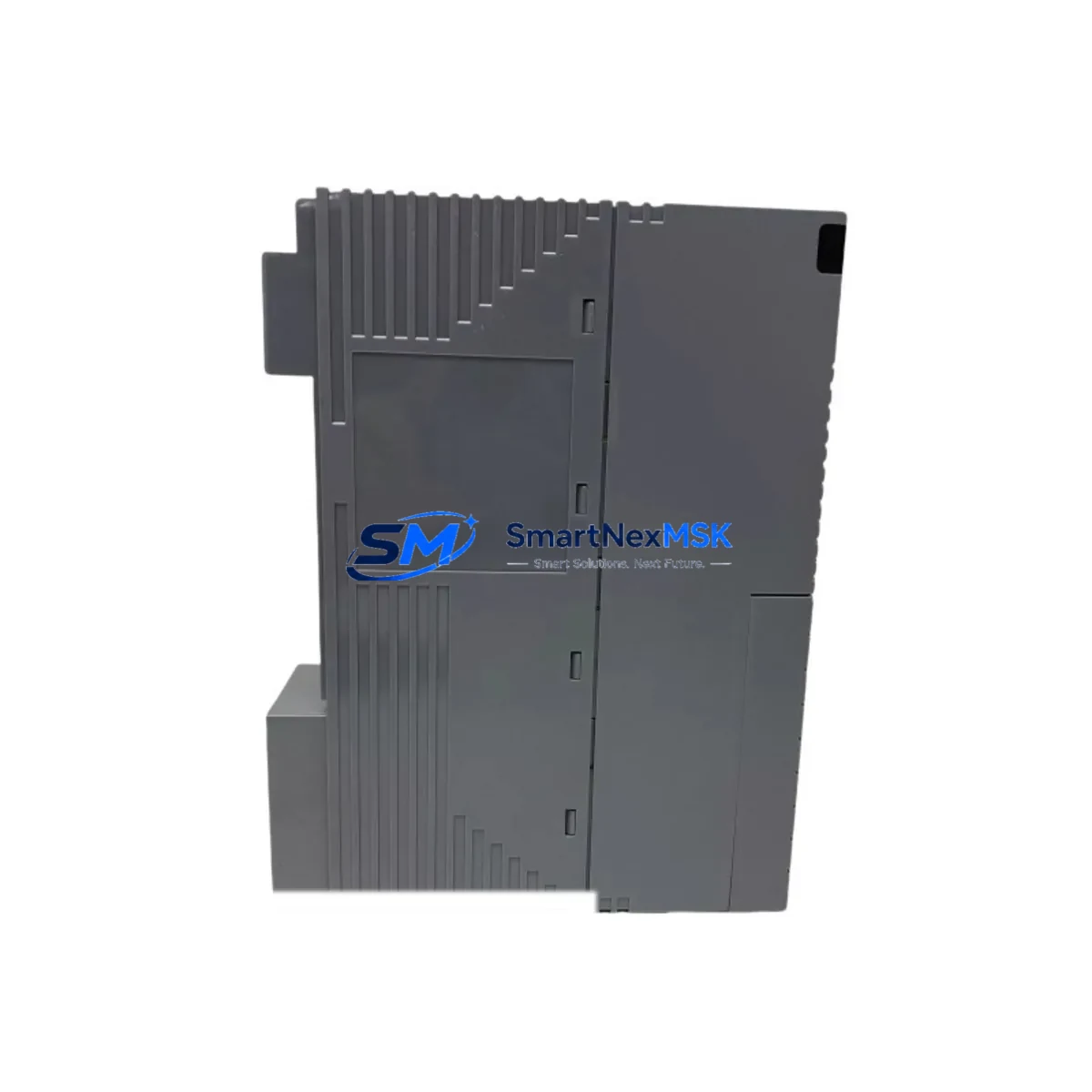

Yokogawa PW481-50 S2 Retrofit-Ready Power Supply for CENTUM VP

Yokogawa PW481-50 S2 Retrofit-Ready Power Supply for CENTUM VP Control Systems

The Yokogawa PW481-50 S2 is a 50W DC power supply module engineered for the CENTUM VP distributed control system platform. As legacy CENTUM CS 3000 and early CENTUM VP installations reach end-of-service milestones, the PW481-50 S2 has become one of the most requested retrofit components for brownfield modernization projects across petrochemical, power generation, and continuous process industries. Whether you are replacing a failed unit in an active control cabinet or executing a planned upgrade from an older power architecture, the PW481-50 S2 delivers the electrical stability and backplane compatibility required to maintain uninterrupted process control.

This module is designed to slot directly into the CENTUM VP field control station (FCS) cabinet, supplying regulated DC power to the control bus and connected I/O modules. Its compact form factor and standardized terminal layout make it a practical drop-in replacement for earlier Yokogawa power supply variants used in the same cabinet family. Engineers undertaking a retrofit should verify the input voltage range (typically 100–240V AC or 24V DC depending on variant), confirm the output current capacity against the total load of installed modules — including the AFV10D analog input modules, AAI141 multi-point analog I/O, and any AAT141 temperature input cards — and check that the backplane connector pinout matches the existing FCS chassis before energizing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on site. For CENTUM VP installations, the first step is auditing the existing FCS cabinet to document every installed module: power supply slots, CPU cards such as the FCU (Field Control Unit), communication modules including the ESB bus coupler, and the full complement of I/O — analog input modules like the AAI141, analog output modules such as the AAV542, and digital I/O cards including the ADV151 and ADV161 series. This inventory determines the total power budget the replacement PW481-50 S2 must support.

Terminal wiring is a critical checkpoint. The PW481-50 S2 uses a standard screw-terminal block for AC input connections. Before disconnecting the existing supply, photograph and document all wire labels, ferrule colors, and torque specifications. In cabinets where the power supply feeds both the control bus and a 24V DC field instrument loop — common in installations that also include Yokogawa STARDOM FCN/FCJ remote I/O nodes or third-party Modbus RTU field devices — the load must be carefully redistributed to avoid nuisance trips during the changeover.

For sites migrating from CENTUM CS 3000 to CENTUM VP, the PW481-50 S2 is often part of a broader hardware refresh that includes replacing the older SCP401 or SCP451 sequence control processors with current-generation FCU processors, updating the HMI stations from CENTUM CS 3000 HIS (Human Interface Station) to CENTUM VP HIS running on Windows Server, and migrating control drawings from the legacy CENTUM CS 3000 builder environment to the CENTUM VP engineering environment. In these projects, the power supply replacement is typically sequenced early — before the CPU swap — so that the new power architecture is validated under load before the control logic is transferred.

Sites that also operate Yokogawa ProSafe-RS safety instrumented systems in the same cabinet room should confirm that the SIL-rated power distribution to the ProSafe-RS I/O modules remains isolated from the CENTUM VP control bus during the retrofit window. Cross-contamination of power domains is a common source of unexpected SIS trips during brownfield upgrades.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering constraint in any live-plant power supply replacement. For the PW481-50 S2, the recommended approach is a hot-standby swap using the redundant power supply slot available in most CENTUM VP FCS cabinets. Where redundancy is already configured, the replacement module can be installed in the standby slot, verified under partial load, and then promoted to active — all without interrupting the running process. The original module is then removed from the now-standby slot.

Where redundancy is not configured, a planned maintenance window is required. The control strategy should be exported from the FCU using the CENTUM VP engineering builder and backed up to a secure offline location before any hardware is touched. If the FCS is running sequences that interact with a Yokogawa Exaquantum historian or a third-party OPC DA/UA server, the historian connection should be gracefully suspended to prevent false data gaps in the process record. After the new PW481-50 S2 is installed and powered, the FCU will perform an automatic self-check; engineers should monitor the FCS status display on the HIS for any module fault alarms before returning the unit to automatic control.

Field instrument loops powered from the 24V DC bus should be verified with a loop calibrator after the supply is restored. Any deviation in loop current — particularly on 4–20mA transmitters connected through AAI141 or AAT141 input cards — should be investigated before the process is returned to closed-loop control. Keeping a structured commissioning checklist, including point-by-point I/O verification and alarm rationalization, is the most reliable way to confirm that the retrofit has not introduced any latent faults.

Retrofit Support FAQ

Q1: Is the PW481-50 S2 a direct replacement for the PW481-50 S1?
Yes. The S2 revision maintains the same backplane connector, output voltage, and current rating as the S1. The primary differences are internal component updates for improved MTBF. No wiring changes or software modifications are required when substituting S2 for S1 in an existing CENTUM VP cabinet.

Q2: Can this module be used in a CENTUM CS 3000 cabinet?
In most cases, yes — provided the FCS chassis and backplane connector are physically compatible. We recommend confirming the chassis generation (AFG10S or AFG20S) and the power slot specification before ordering. Our technical team can assist with compatibility verification based on your cabinet nameplate data.

Q3: What commissioning checks are required after installation?
After seating the module and restoring AC input power, verify output voltage at the backplane test points (nominal 24.0V DC ±2%), check the green POWER LED status on the module faceplate, confirm no PSU FAULT alarms appear on the CENTUM VP HIS, and perform a loop check on at least a representative sample of connected I/O channels. For redundant PSU configurations, test the automatic failover by briefly interrupting the active supply and confirming seamless transfer to the standby unit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including output voltage verification, load regulation testing, and visual inspection. Warranty claims are processed through our sales team at sales@smartnexmsk.com. Damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specification is excluded.
