Yokogawa PW482-50-S2 Maintenance-Ready Spare CENTUM VP

Yokogawa PW482-50-S2 Maintenance-Ready Spare CENTUM VP

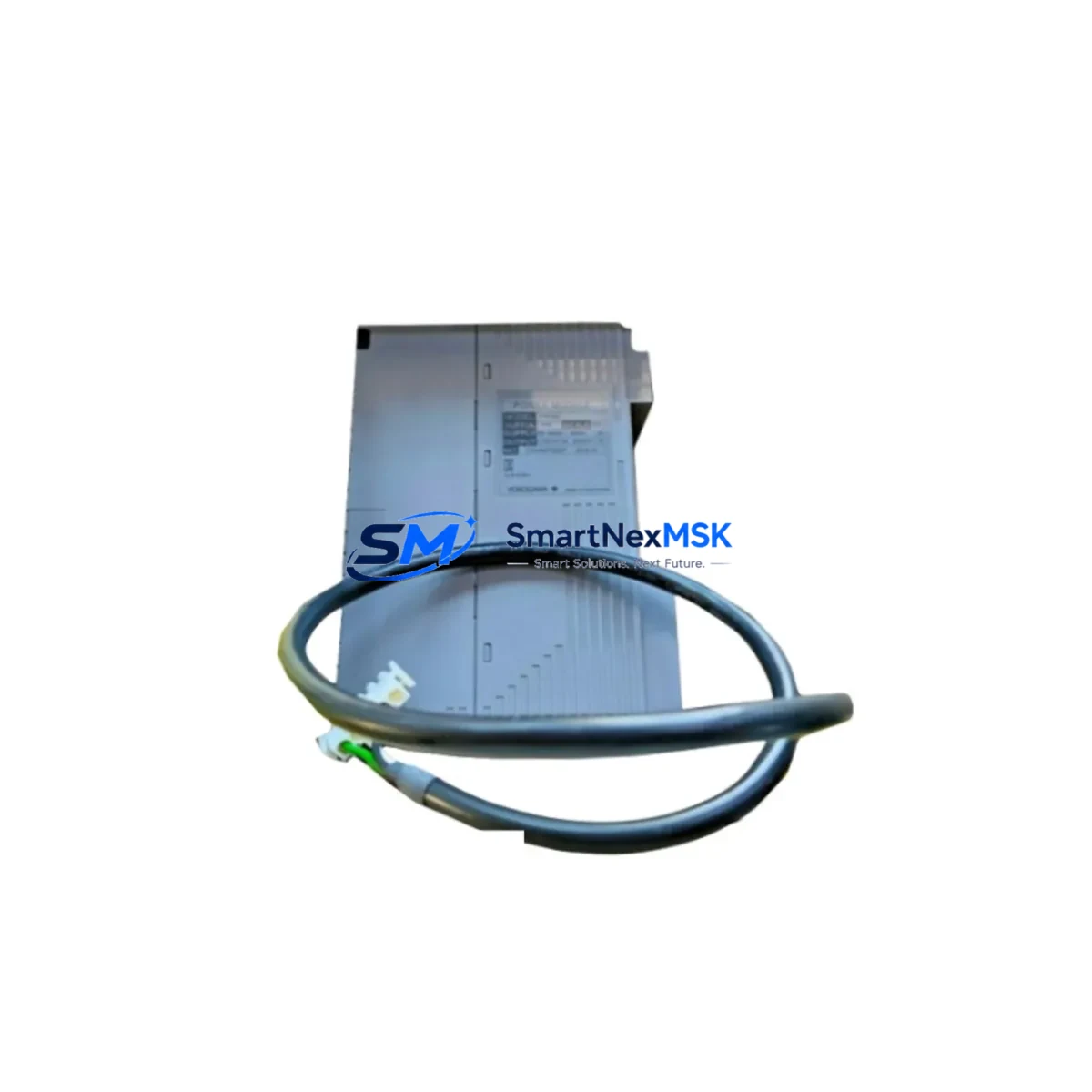

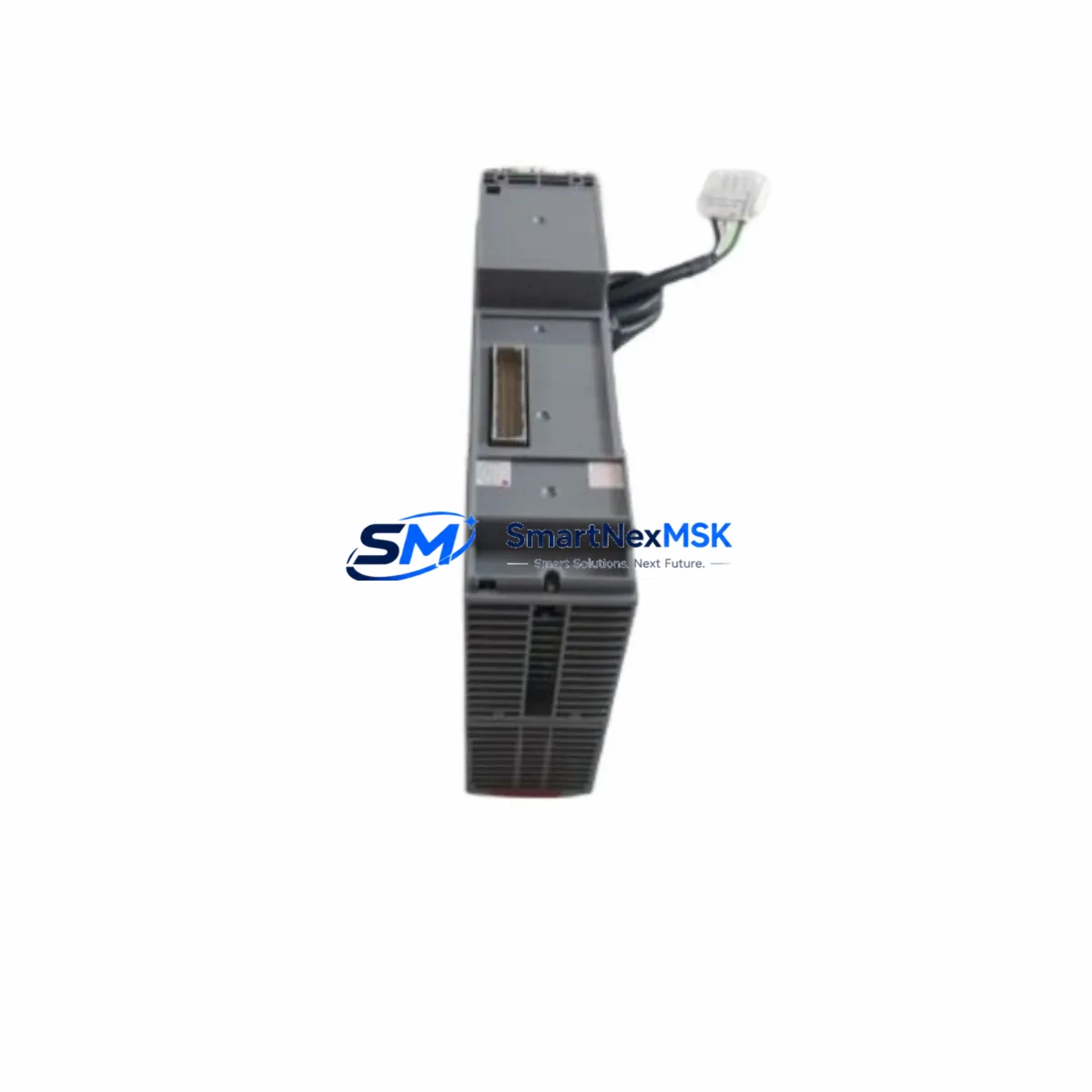

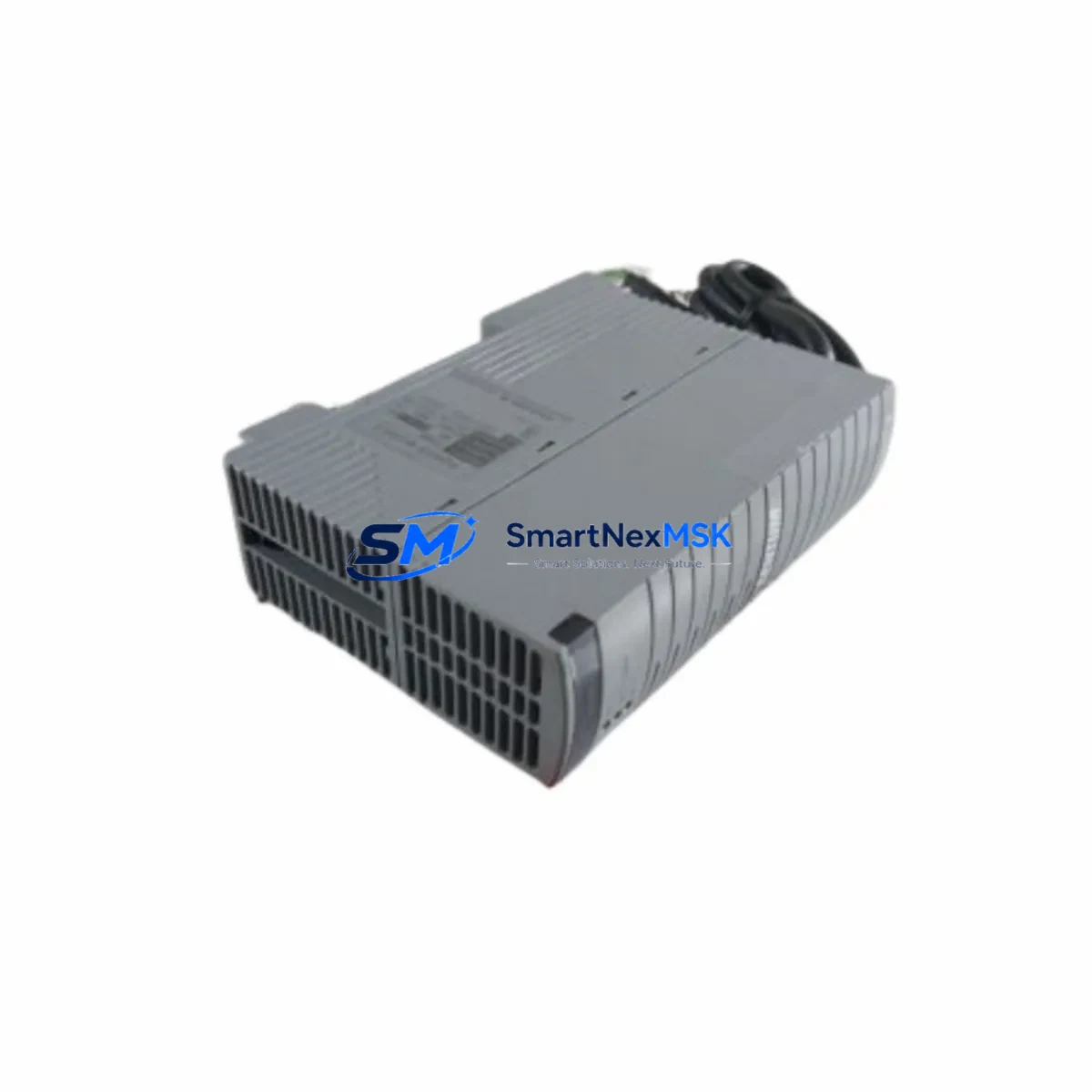

The Yokogawa PW482-50-S2 is an original power supply module engineered for continuous-duty operation within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. In process industries — refining, petrochemical, power generation, and specialty chemicals — the power supply module is the single most critical component in the control cabinet. A failed or degraded PW482-50-S2 can cascade into total I/O loss, controller shutdown, and unplanned process downtime measured in hours or days. Holding a verified, tested spare on the shelf is the most cost-effective insurance a maintenance team can carry.

Every PW482-50-S2 unit shipped by SMARTNEXMSK is sourced from original Yokogawa supply channels, individually bench-tested under load prior to dispatch, and covered by a 12-month replacement warranty. Packaging meets anti-static and vibration-isolation standards for international freight, ensuring the module arrives in field-ready condition.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PW482-50-S2 is flagged during routine cabinet inspection or fails in service, experienced maintenance engineers know that the power supply is rarely the only component under stress. A systematic replacement workflow should extend to the entire power distribution and control chain within the affected cabinet.

Begin by verifying the upstream AC feed: check the cabinet’s input circuit breaker and any surge protection device (SPD) or transient voltage suppressor on the incoming line. A power supply failure caused by an upstream surge event will recur if the protection device is not also replaced. Next, inspect the 24 V DC distribution bus and all associated terminal blocks — Yokogawa CENTUM VP cabinets typically use Phoenix Contact or Weidmüller-style terminal strips, and loose or corroded terminals are a common secondary fault after a power event.

The PW482-50-S2 feeds power to the field control station (FCS) backplane, which in turn supplies the CPU module (e.g., FCU-type processor cards), I/O modules such as the AAI143-S00 analog input card and ADV151-P00 digital output card, and the communication bus interface. After replacing the power supply, confirm that all I/O modules have re-initialized correctly and that no latched fault codes remain in the FCS diagnostics. If the system runs a redundant CPU pair, verify that the standby controller has also resumed normal synchronization.

For cabinets operating CENTUM VP R6 or later firmware, the power supply status is monitored via the system’s hardware self-diagnostic function. Check the HIS (Human Interface Station) or CENTUM VP Engineering Environment for any residual alarms on the power bus node. If the site uses a Yokogawa STARDOM or Vnet/IP communication backbone, confirm that the ESB bus coupler and Vnet/IP interface module have re-established their network heartbeat after the power restoration.

Maintenance planners should also review the condition of the battery-backed memory module or UPS buffer if installed in the same cabinet, as these components experience accelerated aging during power interruption events. Fuse holders on the 24 V distribution rail and any installed signal isolators or loop-powered transmitter barriers should be inspected and tested as part of the same work order. Keeping a paired spare — one PW482-50-S2 plus one set of cabinet fuses and one spare I/O module per critical loop — is the minimum recommended inventory posture for a CENTUM VP installation with a target availability above 99.5 %.

Site Replacement Workflow

Step 1 — Isolation and safety: Coordinate with the control room operator to place the affected FCS in manual or backup control mode. De-energize the cabinet AC input at the upstream breaker and verify absence of voltage with a calibrated meter. If the PW482-50-S2 is installed in a redundant pair, the standby unit should maintain system power during the swap — confirm this before proceeding.

Step 2 — Module extraction: Release the module locking lever and slide the PW482-50-S2 straight out of the backplane slot. Note the slot address for documentation. Inspect the backplane connector pins for signs of arcing, discoloration, or contamination.

Step 3 — Compatibility verification: Confirm the replacement unit’s part number matches PW482-50-S2 exactly. Yokogawa power supply modules are slot-specific; do not substitute with PW481 or PW484 variants without consulting the CENTUM VP hardware manual, as output ratings and connector pinouts differ.

Step 4 — Installation and restoration: Seat the new module firmly until the locking lever engages. Re-energize the AC input and observe the module’s status LED sequence. A solid green LED indicates normal operation. Allow 30 seconds for the FCS to complete its internal power-on self-test before returning the station to automatic control.

Step 5 — Documentation: Record the replacement in the plant CMMS (e.g., SAP PM or Maximo), update the spare parts inventory, and schedule a follow-up inspection of the replaced module’s redundant partner within the next planned maintenance window.

Spare Parts Support FAQ

Q1: Is the PW482-50-S2 compatible with both CENTUM VP and CS 3000 systems?
Yes. The PW482-50-S2 is designed for use across the CENTUM VP and CENTUM CS 3000 DCS families. Both platforms share the same power supply backplane interface for this module series. If your site runs an older CS 3000 R3 installation, verify the hardware revision of your existing unit against the Yokogawa hardware compatibility matrix before ordering.

Q2: How is the module tested before shipment?
Every PW482-50-S2 dispatched by SMARTNEXMSK undergoes a full-load burn-in test and output voltage regulation check. Test records are retained and can be provided upon request. Units that do not meet Yokogawa’s original output specification are not shipped.

Q3: What does the 12-month warranty cover?
The warranty covers any defect in materials or workmanship that causes the module to fail under normal operating conditions within 12 months of the shipment date. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, SMARTNEXMSK will arrange a replacement unit dispatch within 5 business days of fault confirmation.

Q4: Can you supply multiple units for a long-term spare parts agreement?
Yes. SMARTNEXMSK maintains stock of the PW482-50-S2 and can fulfill blanket orders for multi-site or multi-unit requirements. Long-term supply agreements with fixed pricing and priority allocation are available for EPC contractors, plant operators, and MRO procurement teams. Contact our sales team to discuss volume pricing and consignment stock options.
