YOKOGAWA SNT401-5F Spare for YTA Series Automation

YOKOGAWA SNT401-5F Spare for YTA Series Automation: Spare Replacement & Industrial Downtime Risk Control

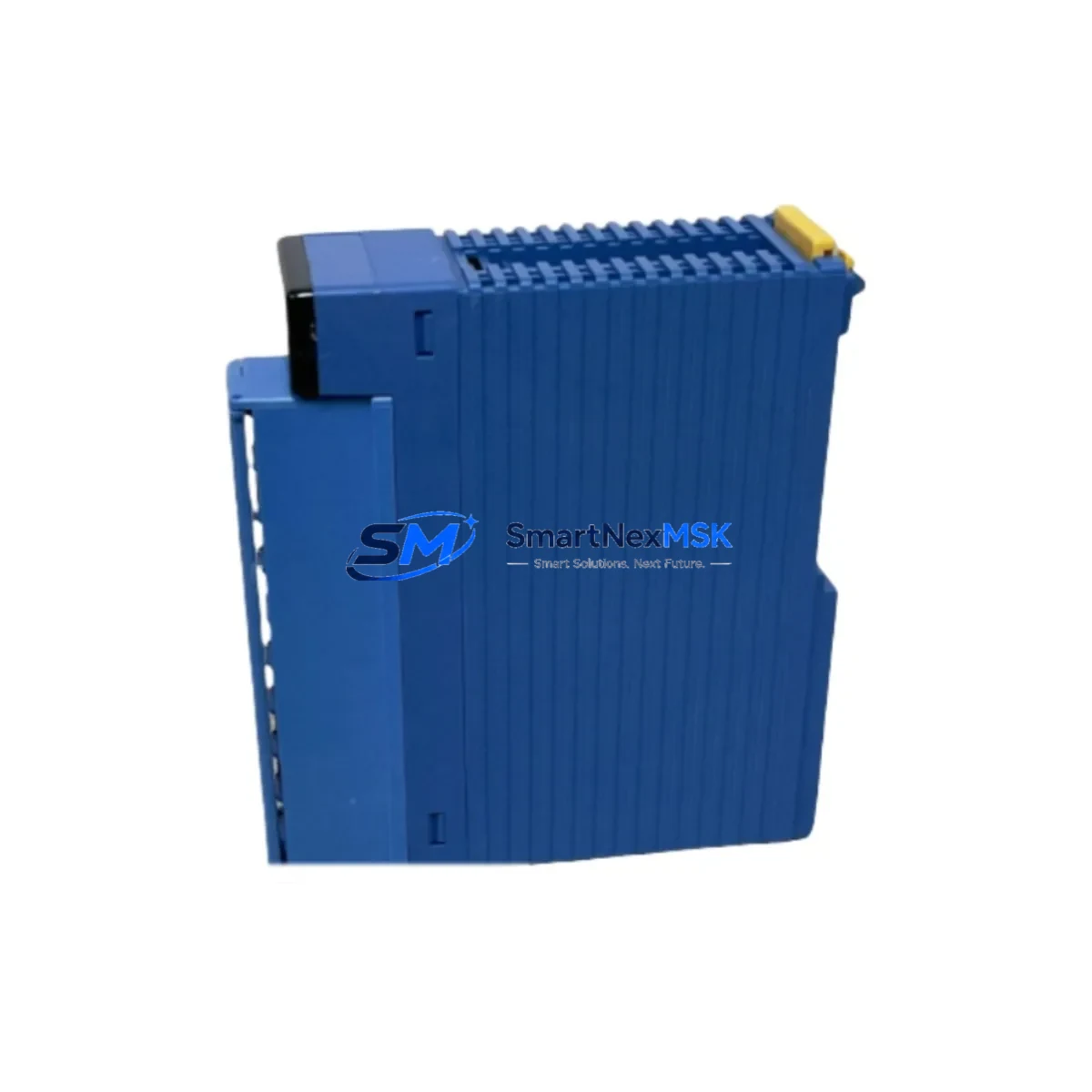

The YOKOGAWA SNT401-5F is a 2-wire HART-compatible temperature transmitter module designed for continuous process measurement in demanding industrial environments. As a genuine original spare, it is purpose-built for maintenance engineers who require a drop-in replacement that preserves loop integrity, signal accuracy, and system compatibility without re-engineering the control architecture. Whether you are managing a planned turnaround, responding to an unplanned fault, or building a proactive spare parts inventory for aging YTA Series installations, the SNT401-5F delivers the reliability and specification fidelity that industrial operations demand.

In process plants, temperature measurement failures cascade quickly. A failed transmitter can trigger interlock trips, force manual override, or cause unplanned shutdowns that cost far more than the component itself. Stocking a verified SNT401-5F spare eliminates the lead-time risk associated with sourcing during an active fault. This unit ships fully tested, with configuration parameters verified against factory specifications, and is backed by a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SNT401-5F in the field is rarely an isolated task. Experienced maintenance engineers know that a transmitter fault often signals broader stress in the measurement loop or the control cabinet. Before returning the loop to service, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure measurement integrity.

Begin with the field wiring and terminal blocks: inspect the 2-wire loop cable for insulation degradation, moisture ingress, and terminal corrosion — particularly in outdoor or high-humidity installations. Check the cable gland and conduit seal for integrity, as water ingress is a leading cause of transmitter failure in field-mounted installations. Verify the loop power supply (typically a 24 V DC HART-compatible barrier or isolator) is within specification; a sagging supply voltage below 16.4 V DC will prevent HART communication even with a new transmitter installed.

Inspect the HART signal isolator or repeater in the marshalling cabinet — units such as the YOKOGAWA MTL or equivalent signal conditioners can degrade over time and introduce loop impedance that masks transmitter faults. If the installation uses a YOKOGAWA CENTUM VP or ProSafe-RS safety system, confirm that the AI (Analog Input) card assigned to this loop — such as the AAI141 or AAI543 — is functioning correctly and that the channel configuration matches the new transmitter’s range and HART address.

For installations using a YOKOGAWA YTA710 or YTA320 head-mounted transmitter in conjunction with the SNT401-5F module, verify that the sensor head connection and the DIN rail mounting adapter are undamaged. Check the thermowell and sensor insert (RTD or thermocouple element) for drift, contamination, or mechanical damage — a worn sensor will cause the replacement transmitter to report inaccurate values immediately after installation.

In the control cabinet, inspect the fuse or circuit breaker protecting the 24 V DC loop supply, the DIN rail terminal strips (such as YOKOGAWA or Phoenix Contact PT series) for loose connections, and any surge protection devices on the field cable entry. If the loop feeds a YOKOGAWA EJX or EJA series pressure transmitter on the same power rail, verify that rail loading is within the power supply’s rated output. Finally, confirm that the HART handheld communicator (or FieldMate configuration tool) can establish communication with the new SNT401-5F before closing the cabinet and returning the loop to automatic control.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or cold-work permit as applicable. Isolate the measurement loop at the marshalling cabinet by opening the loop fuse or disconnecting the field terminals. Confirm the AI channel is in manual mode in the DCS before proceeding.

Step 2 — Remove the failed unit: Disconnect field wiring, noting polarity and terminal assignments. Remove the SNT401-5F module from the transmitter housing or DIN rail mount. Inspect the housing interior for moisture, corrosion, or debris before installing the replacement.

Step 3 — Configure the replacement: Using a HART communicator or YOKOGAWA FieldMate, pre-configure the new SNT401-5F with the correct tag number, engineering units, range (LRV/URV), damping, and HART address to match the replaced unit. This eliminates configuration errors that would otherwise require a second loop interruption.

Step 4 — Install and wire: Mount the replacement unit, reconnect field wiring per the original loop drawing, and verify terminal torque. Restore the loop fuse and confirm 24 V DC supply at the transmitter terminals.

Step 5 — Loop verification: Confirm 4–20 mA output at the AI card matches the process value. Perform a HART communication check from the control room using FieldMate or the DCS asset management system. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory.

This workflow minimizes loop downtime to under two hours for a prepared maintenance team, compared to multi-day delays when sourcing a replacement reactively. Maintaining one SNT401-5F in your on-site spare parts cabinet is the single most effective measure for protecting uptime on YTA Series temperature loops.

Spare Parts Support FAQ

Q1: Is the SNT401-5F compatible with all YTA Series transmitter housings?
The SNT401-5F is the electronics module used across the YTA110, YTA310, YTA320, and YTA710 product lines. Compatibility depends on the housing revision and firmware version. We recommend confirming the existing transmitter’s model suffix and hardware revision before ordering. Our technical team can assist with compatibility verification based on your nameplate data.

Q2: What pre-shipment testing is performed before dispatch?
Every SNT401-5F unit undergoes a full functional test prior to shipment: loop output calibration across the 4–20 mA range, HART communication verification, and insulation resistance check. A test report is available upon request. Units are shipped in anti-static packaging with original manufacturer labeling intact.

Q3: How should the SNT401-5F be stored as a long-term spare?
Store in a dry, temperature-controlled environment (–20 to +70°C), away from direct sunlight and electromagnetic interference sources. Keep in original anti-static packaging. Inspect annually for any signs of corrosion on connector pins. Shelf life under proper storage conditions exceeds five years without performance degradation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed with return shipping arranged by our logistics team, and replacement units are dispatched within 5 business days of fault confirmation.
