Yokogawa STA4D-10 S2 Spare for STA Series Automation

Yokogawa STA4D-10 S2 Spare for STA Series Automation

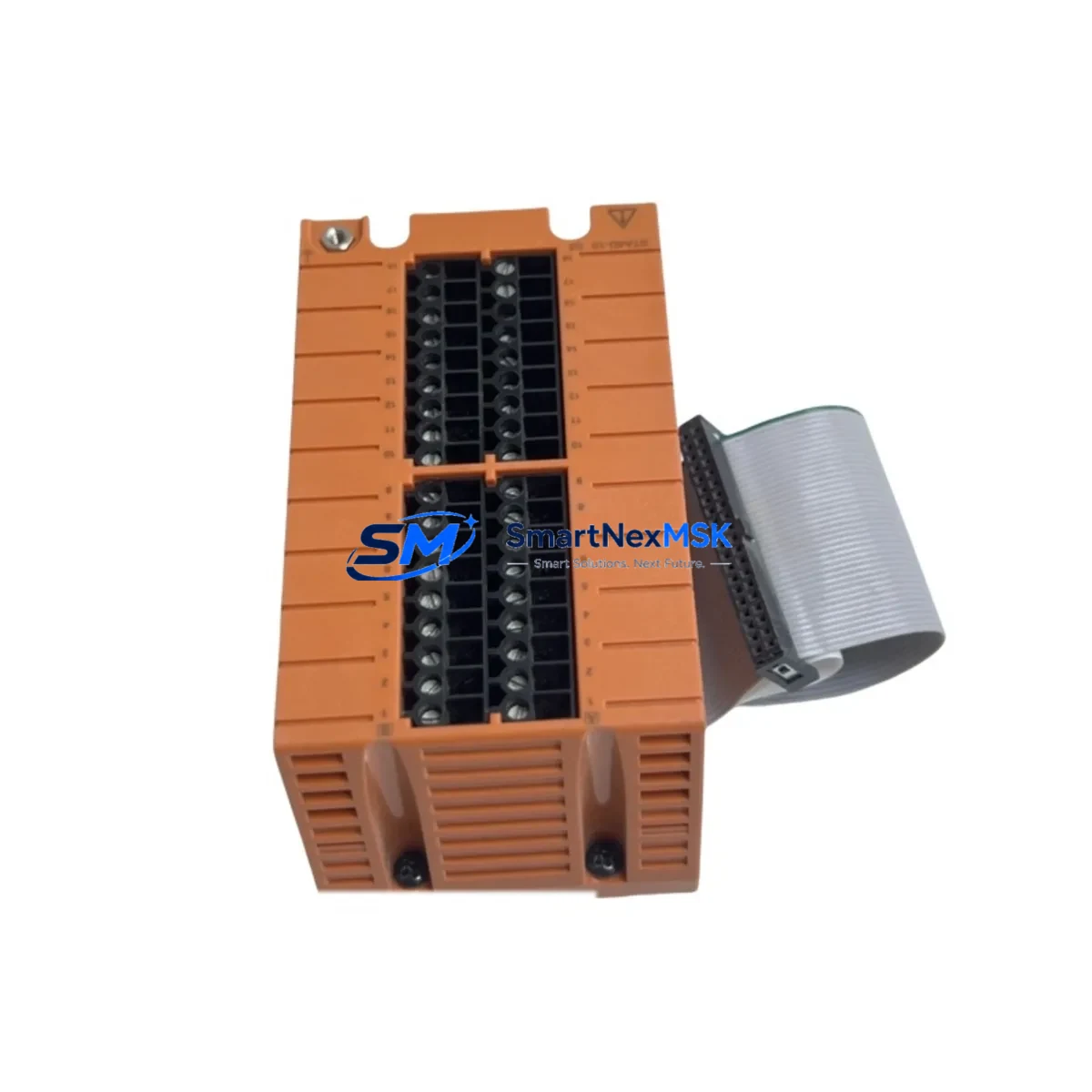

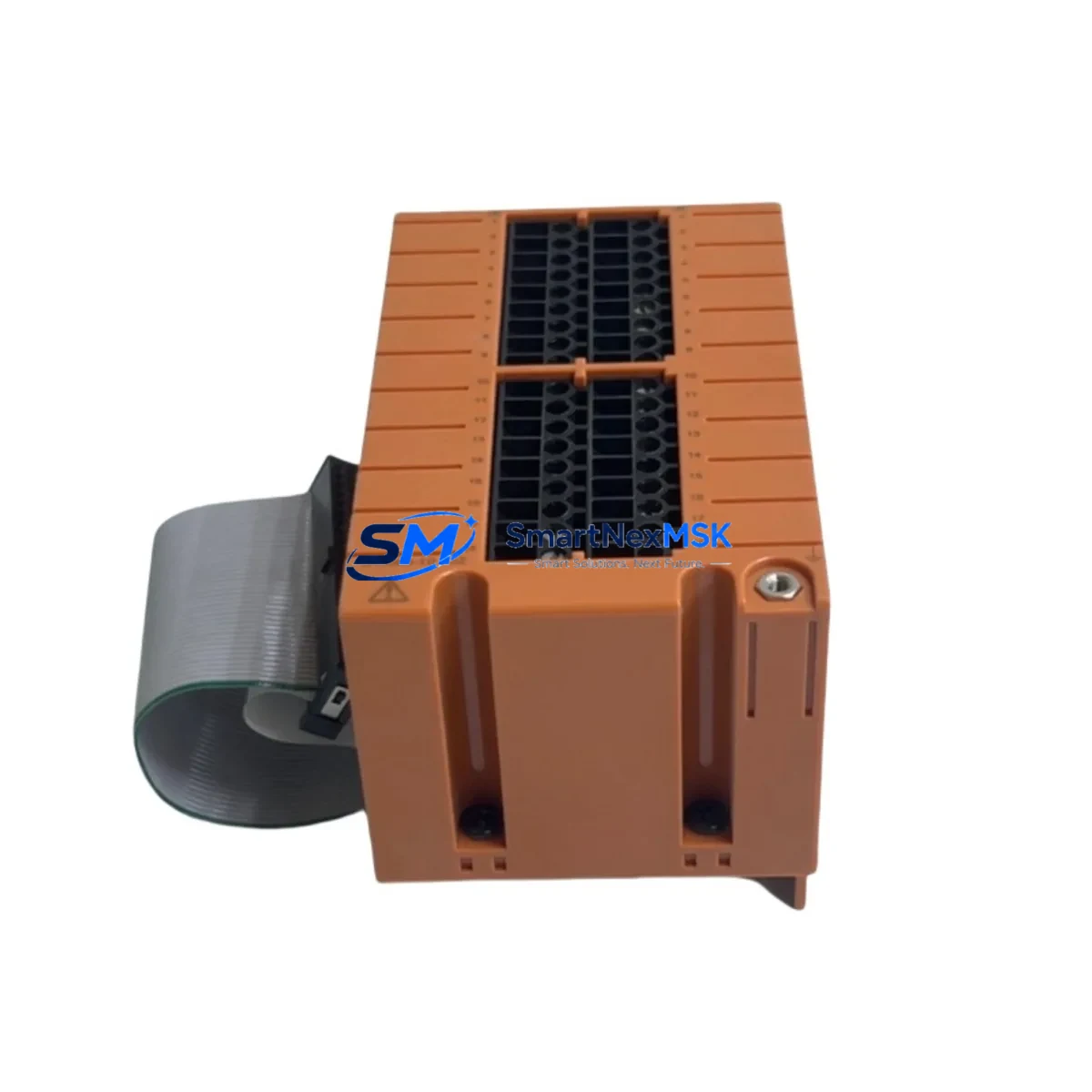

The Yokogawa STA4D-10 S2 is a dual-level spring-clamp terminal block from the STA Series, engineered for reliable signal wiring in industrial DCS and PLC control panels. As a maintenance-ready original spare, it is stocked to support rapid field replacement, minimise unplanned downtime, and extend the service life of legacy Yokogawa CENTUM VP, ProSafe-RS, and STARDOM-based control systems. Every unit is inspection-tested prior to shipment and covered by a 12-month warranty.

For maintenance engineers managing ageing control cabinets, sourcing a verified original STA4D-10 S2 eliminates the compatibility risk associated with generic substitutes. The dual-level design consolidates two wiring circuits in a single DIN-rail footprint, reducing cabinet density and simplifying point-to-point tracing during fault isolation. For procurement engineers, maintaining a buffer stock of STA4D-10 S2 units alongside related STA Series components is a proven strategy for meeting planned turnaround schedules without emergency freight costs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare-parts strategy for any Yokogawa control cabinet should treat the STA4D-10 S2 as part of a broader wiring and signal-integrity bill of materials. During scheduled cabinet inspections or planned shutdowns, maintenance teams replacing worn STA4D-10 S2 terminal blocks should simultaneously audit the following components to prevent secondary failures after restart:

• STA4-10 S2 (single-level variant) – used on the same DIN rail runs for single-circuit signal points; cross-check torque and spring condition alongside dual-level units.
• Yokogawa ADM11 / ADM12 Analog Input Modules – field signals terminated at STA Series blocks feed directly into these I/O modules; verify channel integrity after any terminal replacement.
• Yokogawa AAI141 / AAI143 Analog I/O Cards – common in CENTUM VP FCS cabinets; inspect card-edge connectors and marshalling wiring when STA blocks in the same loop are replaced.
24 VDC Power Supply Units (e.g., Yokogawa PW481 or equivalent) – dual-level terminal blocks in power distribution rows carry 24 VDC field supply; confirm output voltage stability and fuse condition after wiring work.
• Intermediate relay modules (e.g., Yokogawa RY series or Phoenix Contact PLC-RSC) – digital output loops passing through STA terminal rows should have relay coil resistance and contact resistance verified.
• Signal isolators / barriers (e.g., Yokogawa MTL or P+F IS barriers) – intrinsically safe loops use STA-type terminal blocks at the IS boundary; re-verify isolation resistance after terminal replacement in hazardous-area panels.
• Fuse terminal blocks (STA4-MTK or equivalent) – often installed in the same terminal strip for branch circuit protection; inspect fuse continuity and holder contact condition.
• End brackets, partition plates, and DIN rail end stops – mechanical integrity of the terminal assembly affects long-term spring-clamp retention; replace cracked or deformed accessories.
• Yokogawa CENTUM VP FCS communication cables (Vnet/IP or ESB bus) – cabinet vibration during terminal replacement can stress bus connectors; re-seat and inspect after work.
• Yokogawa HIS (Human Interface Station) or EWS engineering workstation – after I/O wiring changes, perform a loop check from the HIS to confirm signal mapping and alarm setpoints are intact.

Maintaining a minimum buffer of 10–20 STA4D-10 S2 units per site, alongside matched quantities of single-level STA4-10 S2 blocks, ensures that any corrective maintenance task can be completed within a single shift without waiting for parts procurement.

Site Replacement Workflow

Step 1 – Isolation and de-energisation: Follow site LOTO (Lockout/Tagout) procedures. Confirm 24 VDC field supply is isolated at the upstream fuse terminal block before opening the cabinet.

Step 2 – Documentation: Photograph existing wiring layout and record conductor labels against the as-built loop drawing. STA spring-clamp blocks retain conductor position, but label sleeves can shift during removal.

Step 3 – Conductor release and removal: Use the correct flat-blade actuator (typically 2.5 mm) to open the spring clamp. Withdraw conductors cleanly without twisting to avoid strand damage.

Step 4 – Block removal and replacement: Slide the worn STA4D-10 S2 off the DIN rail. Snap the new original spare into position, confirming the locking tab engages the rail flange. Verify the grey S2 colour code matches the circuit designation on the wiring schedule.

Step 5 – Conductor re-termination: Re-insert conductors to the correct spring-clamp positions. Perform a gentle pull-test (≥20 N) on each conductor to confirm secure seating without a ferrule requirement (spring-clamp design accepts both ferrule and bare stranded wire).

Step 6 – Loop verification: Re-energise the field supply and perform a live loop check from the Yokogawa HIS or a portable loop calibrator. Confirm 4–20 mA signal integrity and alarm response before closing the cabinet.

Step 7 – Documentation update: Record the replacement in the maintenance management system (CMMS) with the new part serial number, date, and technician ID. Update the spare-parts inventory to trigger a replenishment order for the consumed STA4D-10 S2 unit.

This workflow is compatible with both hot-standby CENTUM VP redundant FCS configurations and single-controller STARDOM FCN installations, minimising system impact and ensuring a controlled return to service.

Spare Parts Support FAQ

Q1: Is the STA4D-10 S2 still in production, and can I source it for an older CENTUM CS 3000 installation?
The STA Series terminal block platform has a long production lifecycle. The STA4D-10 S2 is mechanically and electrically compatible with DIN rail assemblies used in CENTUM CS 3000, CENTUM VP, and ProSafe-RS cabinets. We maintain long-term stock to support legacy system maintenance beyond the original OEM support window.

Q2: How is each unit tested before shipment?
Every STA4D-10 S2 spare is visually inspected for spring-clamp integrity, housing cracks, and colour-code correctness. Electrical continuity of the clamping circuit is verified. Units are individually packaged to prevent transit damage and shipped with a test record. The 12-month warranty covers manufacturing defects and spring-mechanism failure under normal operating conditions.

Q3: Can I replace a single STA4D-10 S2 block without removing the entire terminal strip?
Yes. The STA Series uses individual snap-on DIN rail mounting, so a single block can be removed and replaced without disturbing adjacent terminals. Ensure the replacement block is the same dual-level (D) variant and S2 grey colour code to maintain wiring schedule compliance. If the terminal strip uses bridge connectors or cross-connection combs, remove these before sliding out the defective block.

Q4: What is your lead time and minimum order quantity for STA4D-10 S2?
Standard orders ship within 3–7 business days from verified stock. There is no minimum order quantity — single-unit orders are accepted for emergency maintenance. For planned shutdowns or annual spare-parts replenishment, volume pricing is available. Contact sales@smartnexmsk.com or +86 18259474341 to confirm current stock levels and arrange expedited shipment if required.
