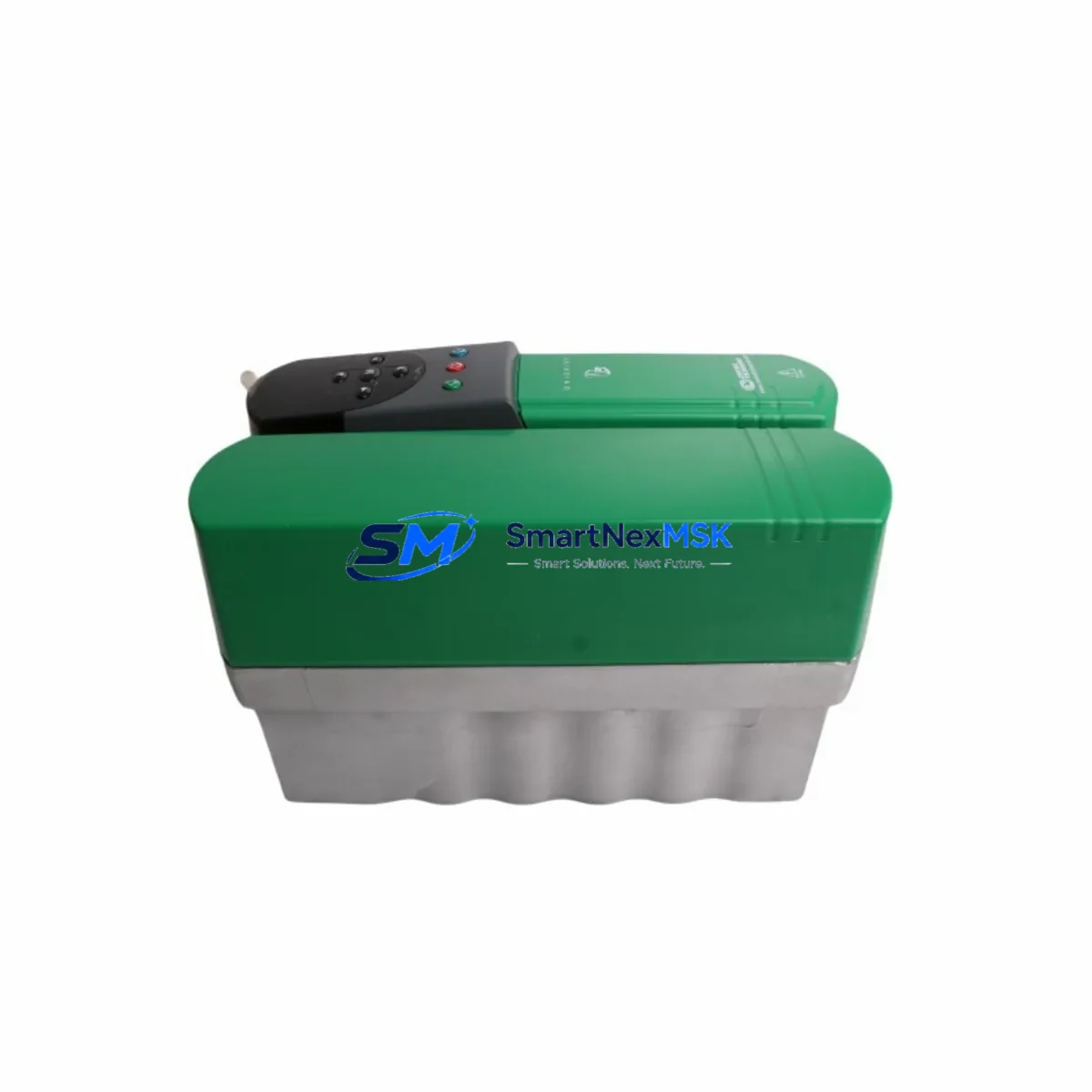

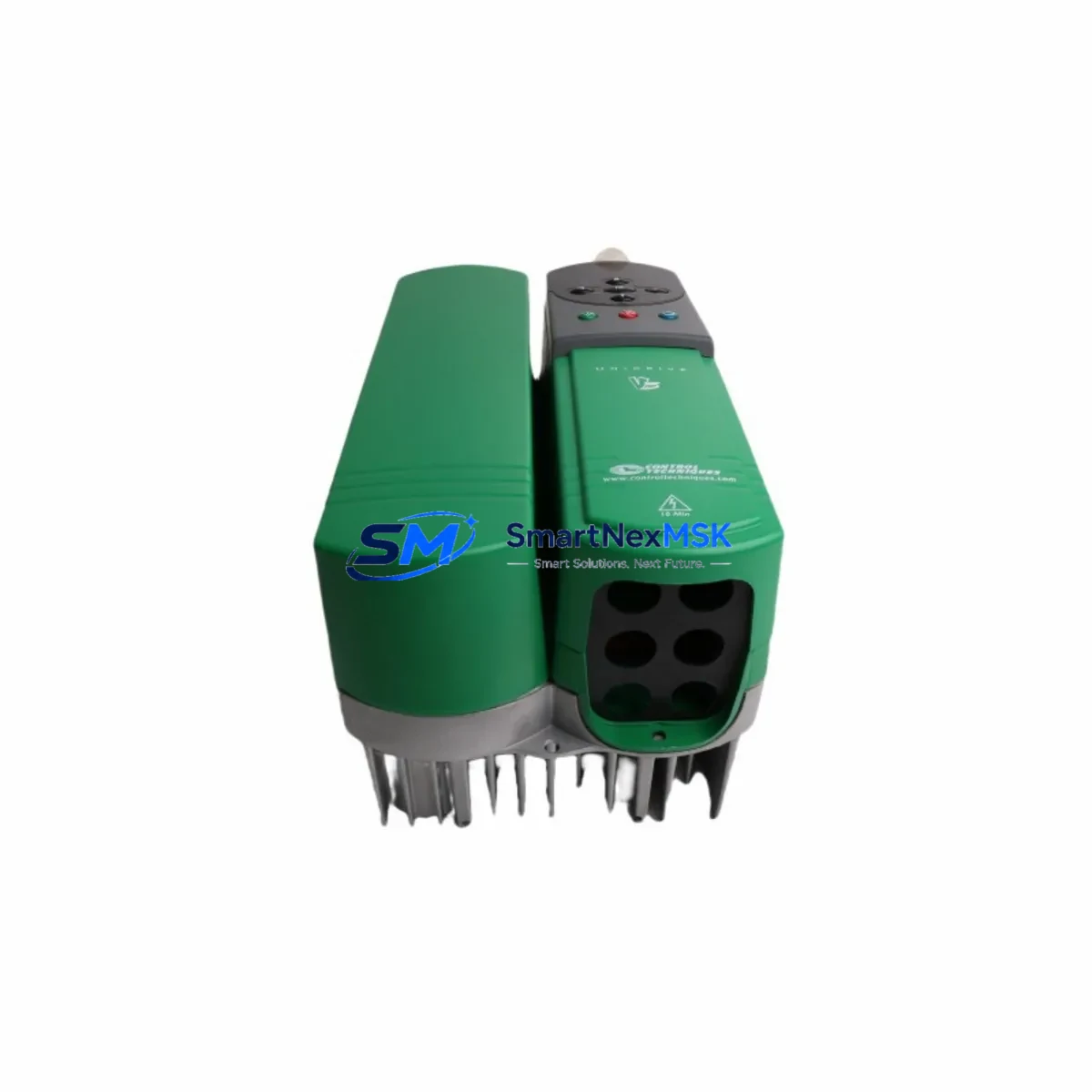

Control Techniques UNI4405 Safety-Enhanced AC Drive

Control Techniques UNI4405 Safety-Enhanced AC Drive: Reliable Control for Harsh Industrial Sites

The Control Techniques UNI4405, part of the renowned Unidrive SP1 series, is an industrial-grade AC variable speed drive engineered to deliver uninterrupted motor control in the most demanding production environments. Whether deployed in continuous process lines, high-interference control cabinets, or safety-critical interlock circuits, the UNI4405 is built to minimize the risk of control interruption, signal drift, power fluctuation, and unplanned field shutdowns. Its robust design philosophy addresses the core reliability requirements of B2B industrial buyers who cannot afford downtime.

Rated for operation across a wide input voltage tolerance, the UNI4405 absorbs supply-side disturbances that would otherwise cause nuisance trips or module mis-operation. Its integrated EMC filtering suppresses conducted and radiated interference, protecting adjacent instrumentation — including Unidrive SP encoder feedback modules and SM-I/O Plus expansion cards — from signal corruption in high-noise environments such as arc furnace bays, variable-load compressor rooms, and heavy crane control panels.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the UNI4405 does not operate in isolation — it is the central motion-control node in a layered protection architecture. On the power supply side, a Control Techniques Unidrive SP line reactor (3–5% impedance) is installed upstream to limit inrush current and reduce harmonic distortion fed back into the plant distribution network. This is particularly important in facilities where multiple large drives share a common MCC bus, as harmonic pollution can destabilize Siemens SITOP PSU8200 24 V DC power supplies feeding PLC racks and safety relay modules.

For fieldbus integrity, the UNI4405 communicates via an SM-PROFIBUS module or SM-EtherNet/IP card slotted directly into the drive’s option bay, eliminating the need for external gateway hardware and reducing potential communication failure points. In safety interlock circuits, the drive’s STO (Safe Torque Off) input is wired in series with a Pilz PNOZ X3 safety relay or equivalent dual-channel emergency stop monitor, ensuring that a loss of the safety signal results in immediate, controlled coast-to-stop without requiring the drive’s main contactor to interrupt full load current — a common cause of contactor wear and arc damage in high-cycle applications.

Thermal management within the cabinet is supported by the UNI4405’s internal fan and heat-sink design, but in sealed or ATEX-rated enclosures, pairing the drive with a Rittal TopTherm cabinet cooler or a Pfannenberg PWS series heat exchanger maintains ambient temperature within the drive’s derating threshold. On the I/O expansion side, SM-I/O Plus modules provide additional analog and digital channels for process feedback — speed reference, torque limit, and motor thermistor inputs — without adding external terminal blocks that introduce wiring resistance and potential signal ground loops.

For applications requiring precise encoder-based closed-loop control, the SM-Encoder Plus module interfaces directly with incremental or absolute encoders mounted on the driven machine, enabling the UNI4405 to maintain speed accuracy within ±0.01% even under rapidly varying load conditions. This level of control precision is essential in winding, extruding, and tension-control applications where speed deviation directly translates to product quality defects or web breaks.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area pump and compressor drives, the UNI4405 is installed in pressurized or purged control rooms (Zone 2 boundary) to regulate flow-critical motors. Its STO function integrates with the plant’s Emergency Shutdown (ESD) system, ensuring that a process trip signal from a Triconex Safety Instrumented System (SIS) or equivalent SIL-rated controller immediately removes torque from the motor without mechanical brake intervention, reducing seal wear and preventing hydraulic hammer in pipeline systems.

Power Generation and Utilities: In coal handling, ash conveying, and cooling tower fan applications, the UNI4405 manages variable-speed operation across wide load ranges. Its ability to ride through short supply dips (up to 15 ms at full load) prevents nuisance trips during grid switching events — a common cause of unplanned outages in power station auxiliary systems. The drive’s kinetic energy buffering function keeps the motor spinning during brief supply interruptions, allowing the process to continue without a full restart sequence.

Mining and Mineral Processing: Underground conveyor drives and surface crusher motors operate in environments with extreme dust loading, vibration, and temperature cycling. The UNI4405’s conformal-coated control board (available as a factory option) resists moisture and conductive dust ingress that would otherwise cause tracking faults on unprotected PCBs. In longwall mining systems, the drive’s dynamic braking output connects to a Unidrive SP braking resistor assembly to safely dissipate regenerative energy from loaded conveyors during controlled stops.

Water and Wastewater Treatment: Variable-speed pump control is the single largest energy-saving application for AC drives in municipal infrastructure. The UNI4405 regulates submersible pump motors and surface-mounted centrifugal pumps to maintain constant pressure setpoints via its built-in PID controller, eliminating the need for a separate process controller in simple single-pump stations. Its auto-restart function, configurable with a time delay and speed search, allows the drive to reconnect to a spinning motor after a supply interruption without mechanical shock — critical for protecting pump impellers and mechanical seals.

Metals and Smelting: In electric arc furnace electrode regulation and rolling mill main drives, the UNI4405 operates in environments with extreme electromagnetic interference generated by high-current bus bars and thyristor rectifiers. The drive’s shielded control wiring requirements and ferrite core recommendations (documented in the Unidrive SP1 installation guide) are essential for maintaining stable speed reference signals in these environments. Pairing the UNI4405 with a Schaffner FN3258 series EMC filter on the input provides additional attenuation of high-frequency conducted emissions that could interfere with plant-wide SCADA communications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the UNI4405?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults under normal operating conditions. It includes free repair or replacement of the drive unit. Warranty claims are processed with a target turnaround of 5–7 business days. Damage caused by incorrect installation, overvoltage beyond specified limits, or unauthorized modification is excluded. Full warranty terms are provided with each shipment.

Q2: What pre-shipment testing is performed on each UNI4405?
Every UNI4405 unit undergoes a full functional load test prior to dispatch. This includes power-on verification, output voltage balance check across all three phases, insulation resistance measurement (megger test at 500 V DC), and parameter default confirmation. A test report is available upon request. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the UNI4405 compatible with existing Unidrive Classic installations?
Yes. The UNI4405 is dimensionally and electrically compatible with the Unidrive Classic frame size 4 footprint, allowing direct panel replacement without cabinet modification in most installations. Parameter migration from Unidrive Classic to Unidrive SP1 requires a parameter mapping exercise, and our technical team can provide a pre-configured parameter file for common applications (pump, fan, conveyor) to reduce commissioning time.

Q4: Can long-term supply continuity be guaranteed for the UNI4405?
We maintain dedicated stock of UNI4405 units and key Unidrive SP1 series components to support ongoing maintenance and emergency replacement requirements. For customers with critical installed bases, we offer reserved stock agreements to ensure priority access. Our supply chain covers both new and fully tested refurbished units, providing cost-effective options for budget-constrained maintenance programs. Contact our team to discuss long-term supply arrangements.
