HIMA F7553 Retrofit-Ready Safety Bus Coupling for HIMax

HIMA F7553 Retrofit-Ready Safety Bus Coupling for HIMax Control Systems

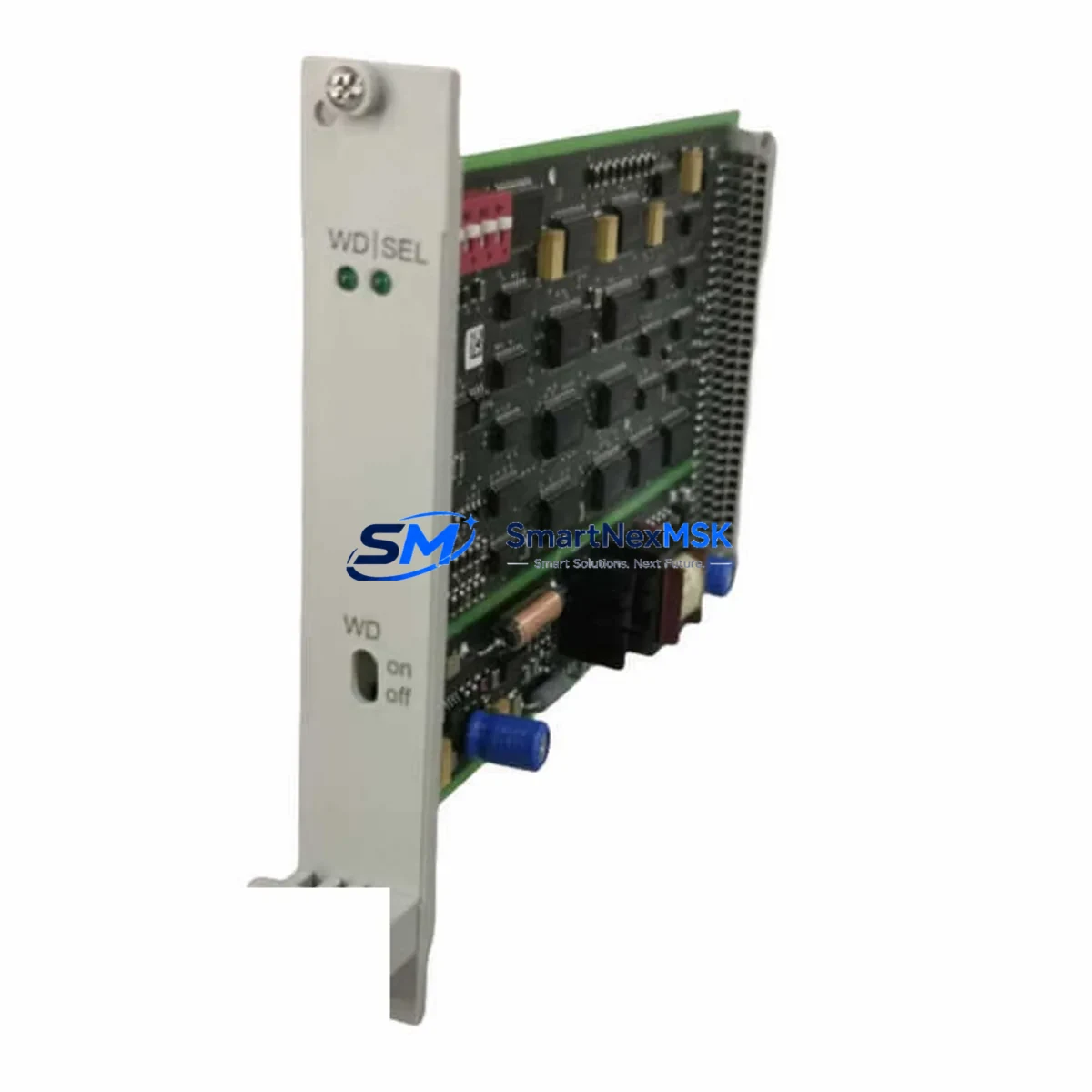

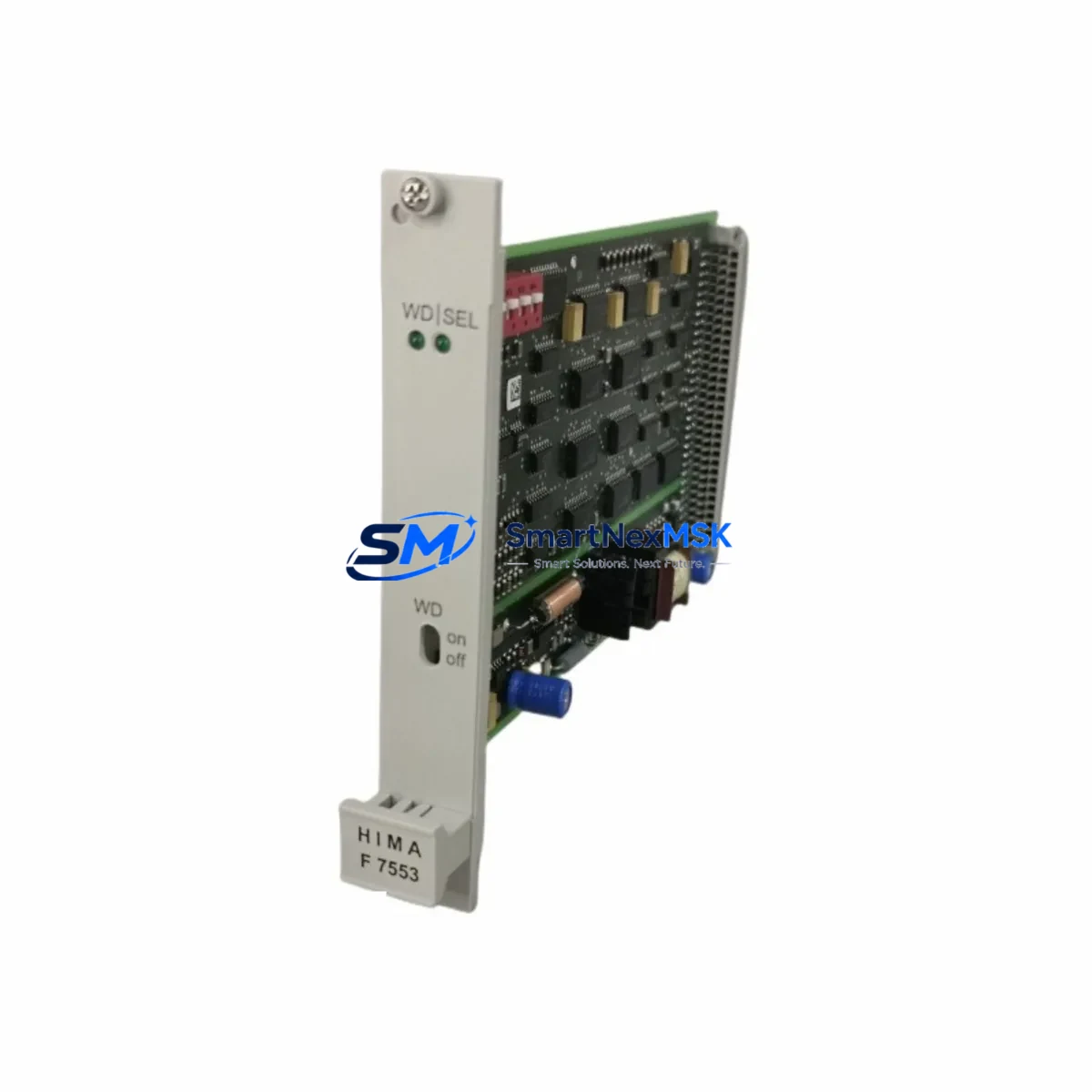

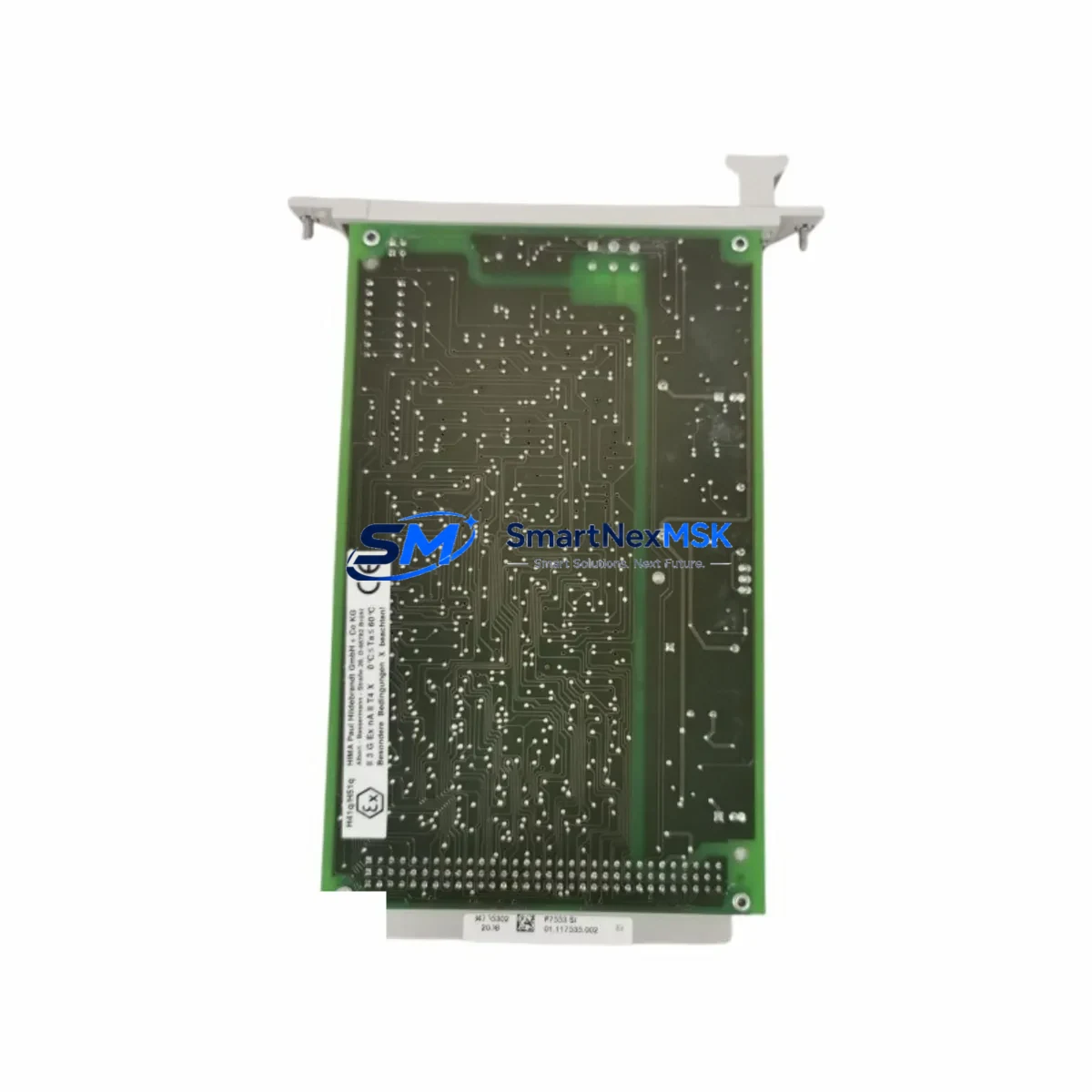

The HIMA F7553 is a Safety Bus Coupling Module engineered for seamless integration into HIMax and HIMatrix safety control platforms. Designed to meet SIL 3 requirements per IEC 61508, the F7553 serves as a direct retrofit replacement for aging or discontinued safety bus interface components in process automation, oil & gas, chemical, and power generation environments. Whether you are upgrading a legacy HIMatrix rack or expanding an existing HIMax cabinet, the F7553 provides the communication backbone that keeps your safety instrumented system (SIS) running without interruption.

When planning a retrofit around the F7553, engineers must first audit the existing backplane slot assignments and confirm that the target rack — typically an HIMax Central Unit rack or an HIMatrix F60 chassis — has an available slot with the correct bus voltage rail. The F7553 draws its logic supply from the internal safety bus, so verifying that the HIMax Power Supply Module (e.g., F8652E or F8652X) can sustain the additional load is a mandatory pre-installation step. Undersized power budgets are one of the most common causes of unexpected shutdowns during live migration windows.

Terminal wiring for the F7553 follows the standard HIMax 40-pin front connector pinout. Before disconnecting the legacy coupling module, technicians should photograph or export the existing terminal assignment from SILworX — HIMA’s engineering and configuration software — to preserve the original I/O mapping. Any deviation in terminal numbering between the old module and the F7553 must be reconciled in the SILworX project file before the new module is powered on. Failure to do so can trigger a safety bus fault that forces the controller into a safe state, causing unplanned process shutdown.

The F7553 communicates over HIMA’s proprietary safeethernet protocol, which provides deterministic, black-channel-independent data exchange between HIMax CPUs and remote I/O stations. If the existing plant network uses an older HIMA bus variant, a protocol migration plan must be prepared. In many brownfield projects, the F7553 is installed alongside an HIMax F8627X Communication Module to bridge legacy Profibus DP segments to the safeethernet backbone, allowing phased migration without a full cutover. Similarly, where Modbus TCP or EtherNet/IP connectivity to a DCS or SCADA layer is required, the F8628X or F8629X communication modules are commonly deployed in the same rack.

For I/O expansion during the retrofit, the F7553 is frequently paired with HIMax digital input modules such as the F3236 (32-channel DI, SIL 3) and digital output modules such as the F3330 (16-channel DO, SIL 3). Analog signal chains — particularly 4–20 mA loops from pressure transmitters and flow meters — are typically routed through HIMax F3416 or F3418 analog input modules. Confirming that module addresses in the SILworX hardware configuration match the physical slot positions in the rack is critical; address mismatches are a leading cause of diagnostic faults during commissioning.

HMI integration must also be validated as part of the F7553 retrofit. Plants running WinCC, iFIX, or AVEVA System Platform will need to verify that the OPC DA or OPC UA server tags referencing safety bus status variables are still mapped correctly after the module swap. In some cases, the F7553 exposes additional diagnostic variables — such as bus load percentage and frame error counters — that were not available on the predecessor module, and these should be added to the HMI faceplates to improve operator visibility during the post-retrofit monitoring period.

Downtime planning for an F7553 swap in a live SIS environment typically targets a maintenance window of two to four hours, assuming the SILworX project has been pre-validated in simulation mode and a full program backup has been archived. HIMA recommends performing a Factory Acceptance Test (FAT) on the replacement module before it reaches the field, and SMARTNEXMSK ships every F7553 unit with a pre-shipment functional test report to support this requirement. All units carry a 12-month warranty covering manufacturing defects and are traceable to original HIMA production documentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful F7553 retrofit begins well before the maintenance window opens. The engineering team should export the current SILworX project, document all rack slot assignments, and create a hardware delta list comparing the existing configuration against the target architecture. In a typical HIMax cabinet, the F7553 occupies a dedicated coupling slot adjacent to the CPU modules — commonly the F8650E or F8650X Central Processing Units — and must not be confused with standard I/O slots.

Power distribution within the cabinet deserves particular attention. The HIMax F8652E Power Supply Module provides 24 VDC to the backplane, and adding the F7553 increases the bus load. If the existing power supply is already operating near its rated output, a second F8652E in redundant configuration may be required before the F7553 can be safely installed. This is especially relevant in cabinets that have already been expanded with additional F3236 digital input modules or F3416 analog input modules since the original system commissioning.

For plants migrating from an older HIMatrix F35 architecture to HIMax, the F7553 acts as the communication bridge that allows the new HIMax CPU to supervise remote HIMatrix I/O stations during the transition period. This phased approach — running both platforms in parallel before full cutover — significantly reduces project risk and allows the operations team to validate each I/O loop individually without taking the entire process offline. Programming cables such as the HIMA USB-to-serial adapter are used throughout this phase to maintain a live SILworX connection to both platforms simultaneously.

Where the plant DCS communicates with the SIS via Profibus DP, the F8627X Profibus Communication Module is installed in the same HIMax rack as the F7553 to maintain the existing DCS interface while the safety bus is being upgraded. This avoids the need to modify DCS configuration during the SIS retrofit — a significant schedule and risk reduction in projects where DCS change management cycles are long.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any SIS retrofit. For the F7553, the recommended approach is a three-phase migration: pre-work, hot-swap window, and post-swap verification. During pre-work, the SILworX project is fully validated in offline simulation, all terminal assignments are documented, and the replacement F7553 is bench-tested against the FAT report. The hot-swap window — ideally scheduled during a planned turnaround or low-production period — involves removing the legacy coupling module, installing the F7553, and restoring power in a controlled sequence that prevents spurious output activation on connected F3330 digital output modules.

Post-swap verification covers four areas: safety bus communication status (confirmed via SILworX diagnostics), I/O loop integrity (confirmed by walking down each field device), HMI tag validity (confirmed by reviewing all safety bus status displays in the operator console), and program logic continuity (confirmed by comparing the live CRC of the loaded program against the archived project file). If all four checks pass within the maintenance window, the system can be returned to operational mode without extending the outage. SMARTNEXMSK’s technical support team is available to assist with remote SILworX diagnostics during the commissioning phase at no additional charge for units purchased with the 12-month warranty.

Retrofit Support FAQ

Q1: Is the F7553 a direct drop-in replacement for the existing safety bus coupling module in my HIMax rack?
In most HIMax configurations, yes. The F7553 uses the standard HIMax backplane interface and 40-pin front connector. However, you must verify the slot type in your specific rack revision and confirm that your SILworX hardware configuration references the F7553 part number. If your existing project references a different module designation, a hardware configuration update and re-download will be required before the module is recognized by the CPU.

Q2: What wiring changes are needed when installing the F7553?
The F7553 follows the standard HIMax terminal assignment for safety bus coupling modules. In most cases, existing field wiring can be reconnected without modification. The critical step is to export and verify the terminal assignment from SILworX before disconnecting the old module, then confirm each terminal position against the F7553 datasheet during reinstallation. Any discrepancy must be corrected before power-on to avoid a safety bus fault.

Q3: How is compatibility with my existing safeethernet network verified before installation?
Compatibility is confirmed through the SILworX hardware configuration tool. The F7553 supports the current safeethernet protocol revision used by HIMax and HIMatrix F60/F35 platforms. If your system runs an older firmware version, HIMA recommends a firmware audit prior to installation. SMARTNEXMSK can provide the module’s firmware version on request so you can cross-reference it against your system’s compatibility matrix before the unit ships.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every F7553 unit shipped by SMARTNEXMSK undergoes a functional pre-shipment test that verifies bus communication, power-on self-test completion, and diagnostic output integrity. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Each unit is traceable to HIMA’s original production documentation. Warranty claims are processed directly through SMARTNEXMSK; replacement units are dispatched within 5 business days of fault confirmation.
