HIMA Z7108 Retrofit-Ready Cable Plug for Z7000 Systems

HIMA Z7108 Retrofit-Ready Cable Plug for Z7000 Control Systems: Compatible Modernization and Smooth System Upgrade

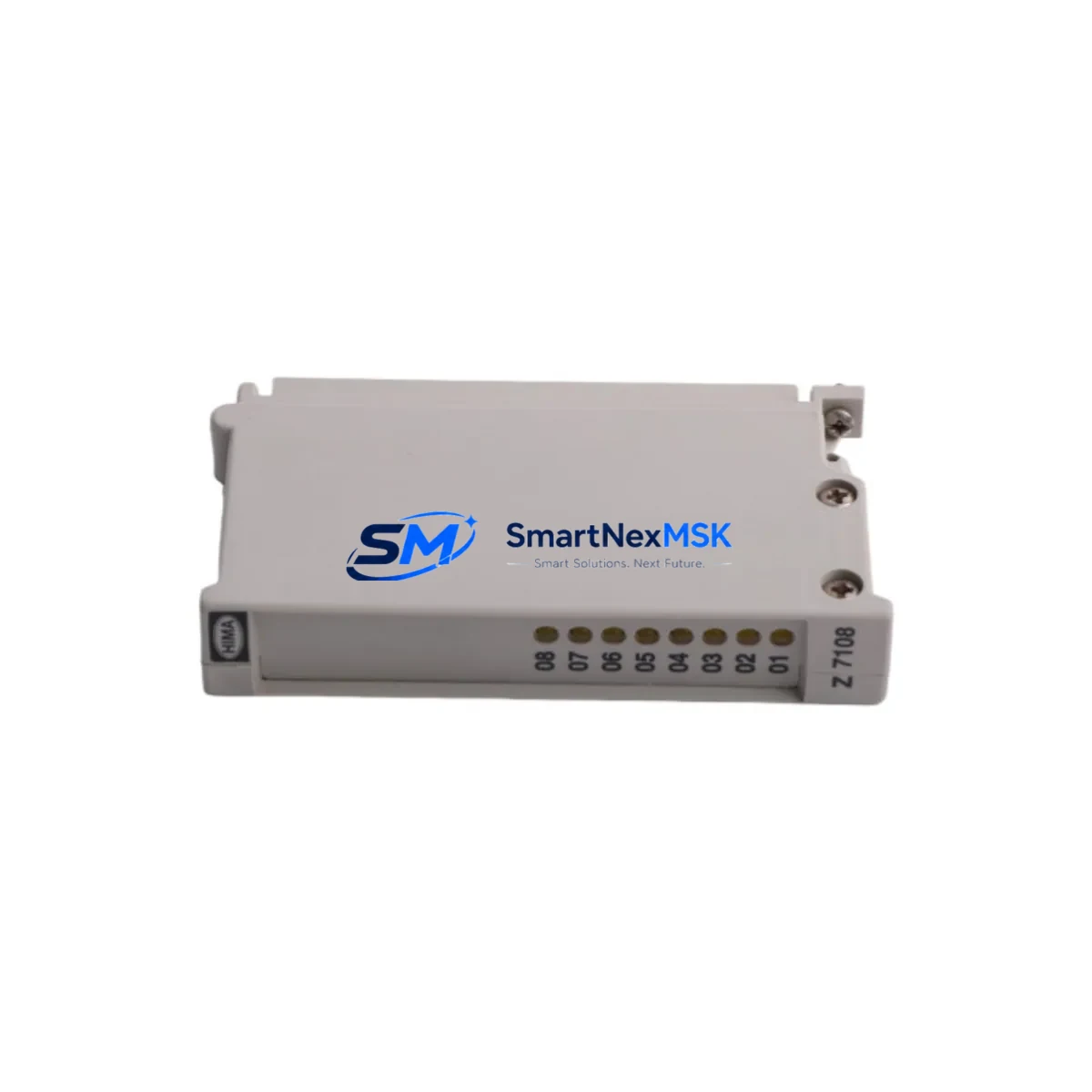

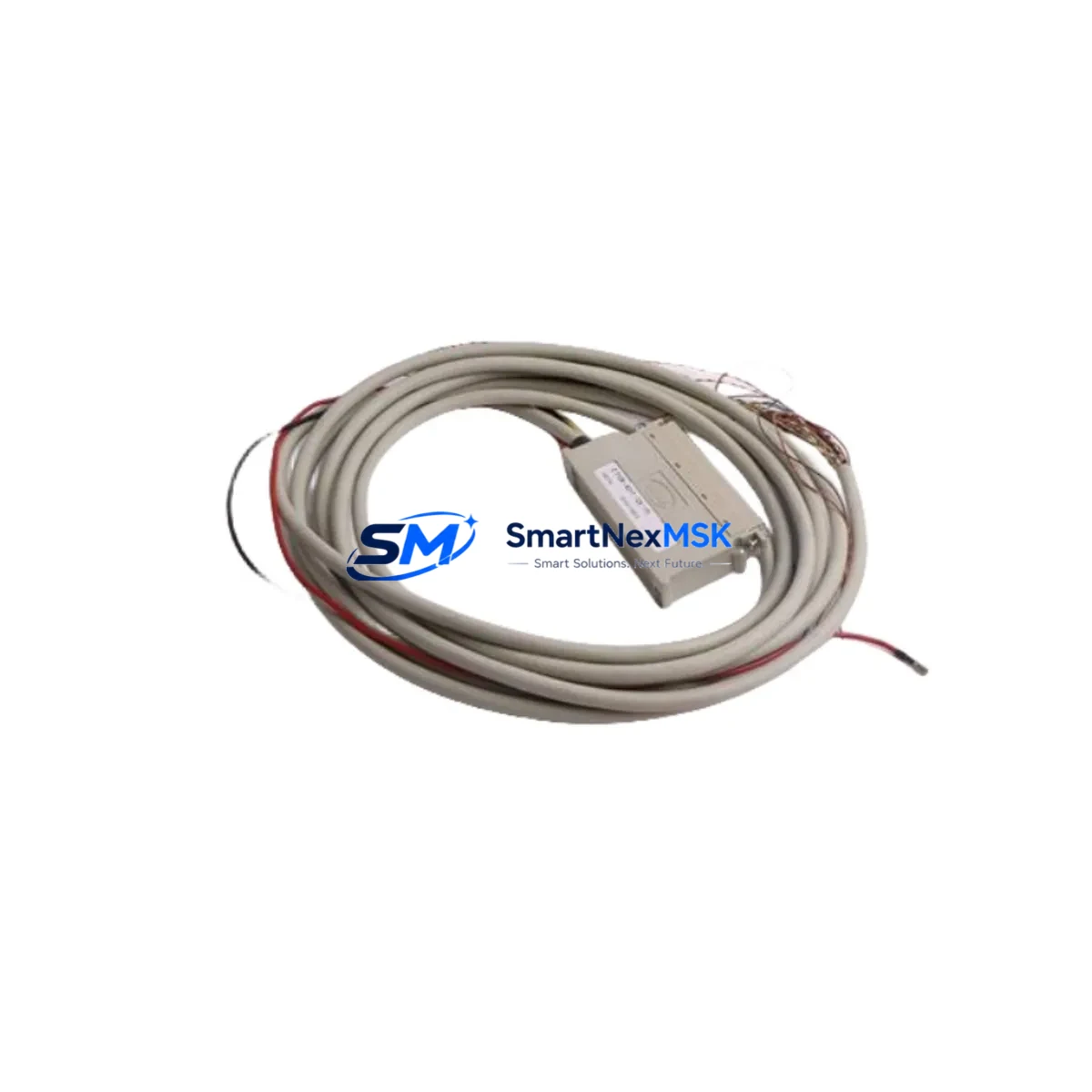

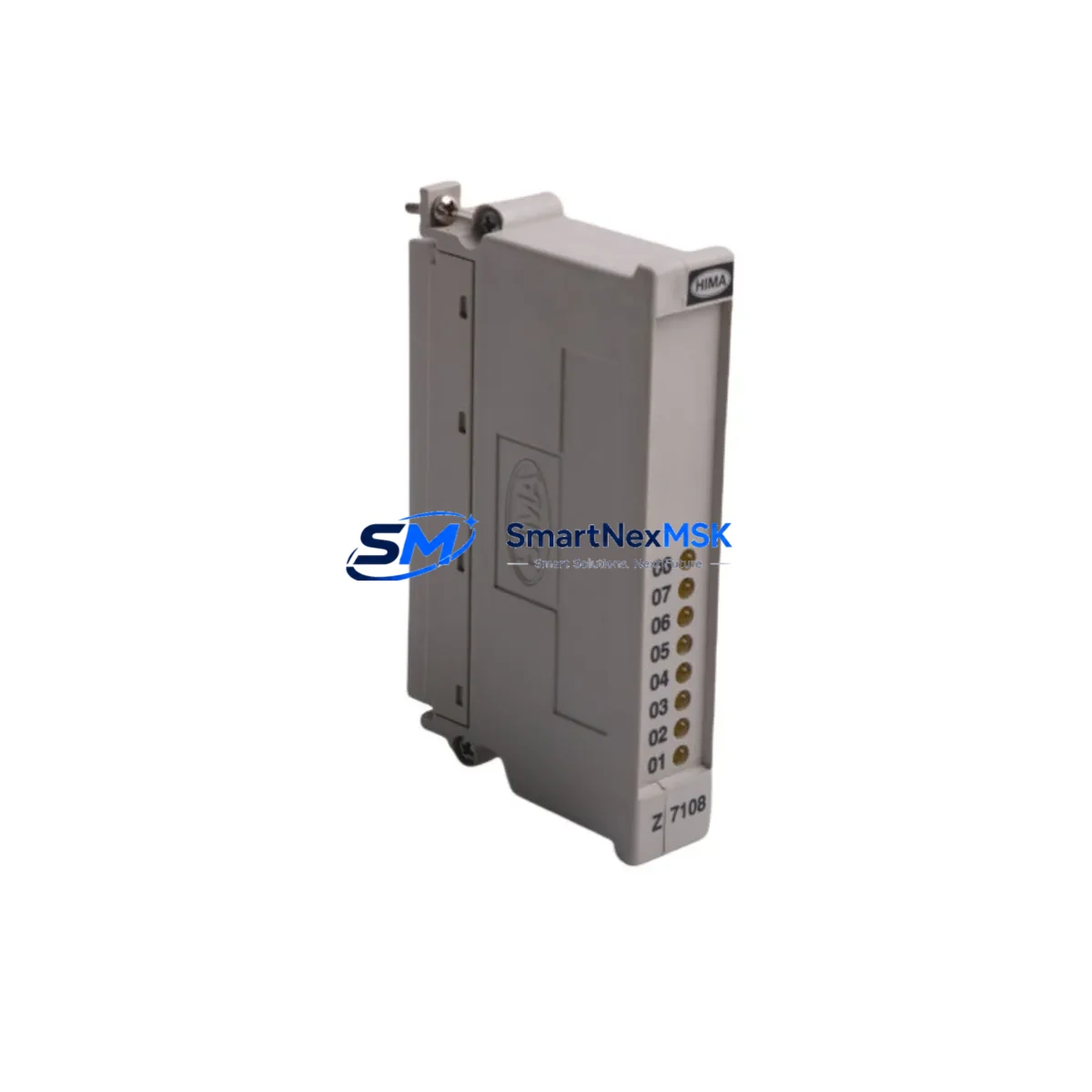

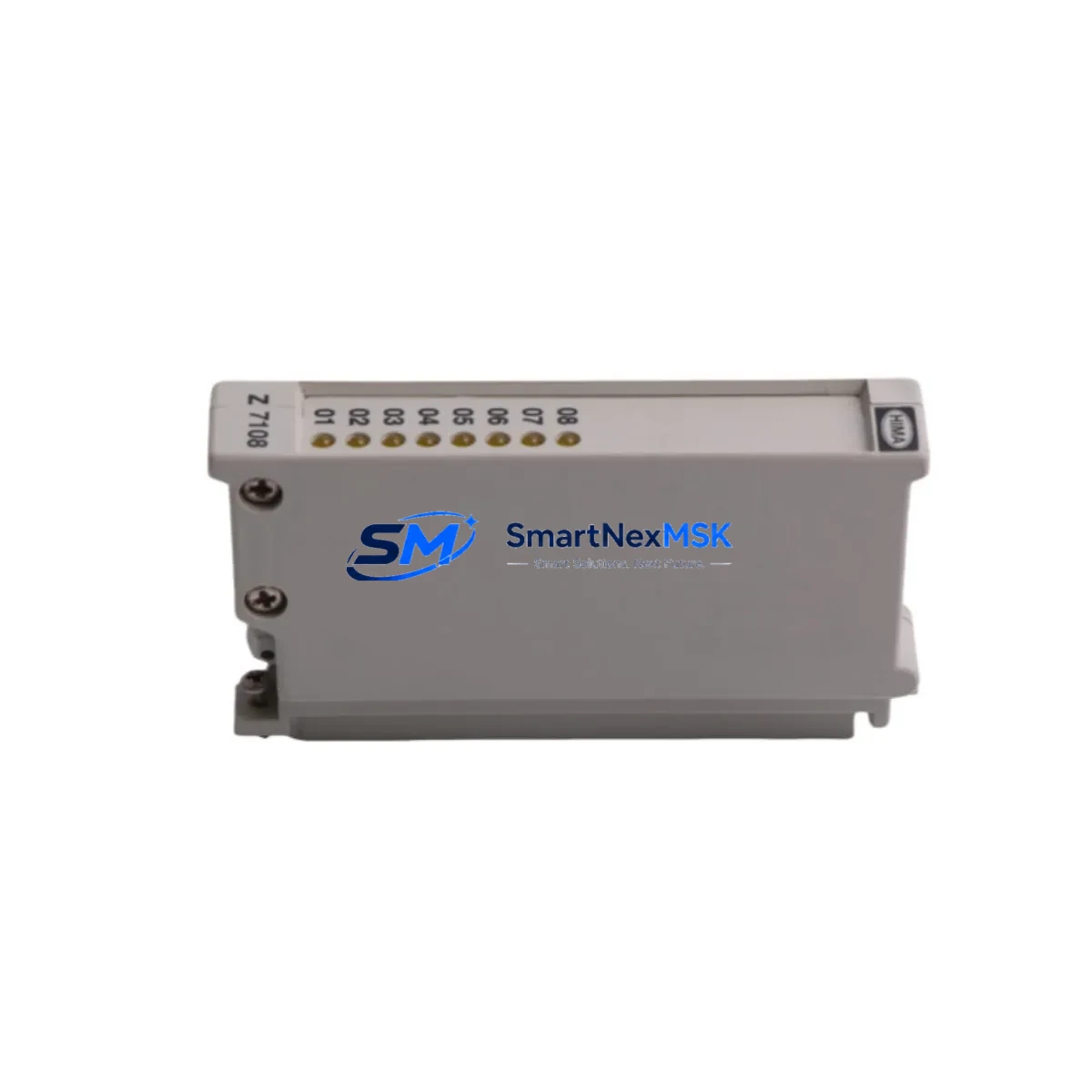

The HIMA Z7108 is a precision-engineered cable plug connector designed for use within the HIMA Z7000 Series Safety Instrumented System (SIS) platform. As legacy control architectures age and original spare parts become increasingly difficult to source, the Z7108 serves as a critical retrofit component enabling engineers to restore, upgrade, and extend the operational life of existing safety-critical automation systems without requiring full platform replacement.

Whether you are managing a scheduled turnaround, responding to an unplanned failure, or executing a phased modernization of your control infrastructure, the Z7108 provides the electrical and mechanical compatibility required to maintain system integrity. Its connector geometry, pin assignment, and cable termination specifications are fully aligned with the Z7000 Series backplane and I/O module interface standards, ensuring that replacement can be completed with minimal engineering rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HIMA Z7108 into an existing Z7000 Series installation requires a structured retrofit assessment. Before commencing replacement, engineers should audit the current wiring schedule against the Z7000 Series module terminal assignment documentation. The Z7108 connector interfaces directly with HIMA Z7000 Series digital input and digital output modules, including the F3 DI 16/8 01 and F3 DO 16/8 01 I/O modules commonly deployed in process safety applications.

Power supply capacity must be verified at the rack level. The Z7000 Series system typically draws regulated 24 VDC from a dedicated safety-rated power supply module. When replacing connectors during a live maintenance window, confirm that the associated power supply module — such as the HIMA Z7116 or equivalent rack power unit — is delivering stable voltage within specification before reconnecting field wiring.

Backplane integrity is equally important. The Z7000 Series uses a passive backplane rack that routes communication and power between the central processing unit and I/O modules. Inspect the backplane connector seats for oxidation or mechanical damage before installing the Z7108 replacement plug. If the rack itself shows signs of degradation, a parallel assessment of the HIMA Z7001 or Z7002 rack assembly should be conducted.

For systems that include HIMA HIMatrix F35 or HIMax X-MIO controllers communicating over SAFEETHERNET, verify that the communication module — typically a HIMA F8650E or equivalent Ethernet gateway — remains correctly addressed after the connector swap. Module address settings stored in the HIMA SILworX engineering tool should be backed up prior to any physical intervention on the rack.

Field I/O wiring should be documented and photographed before disconnection. The Z7108 supports standard 0.5 mm² to 1.5 mm² stranded copper conductors. Ferrule termination is recommended for all field connections to ensure consistent contact resistance and long-term reliability in vibration-prone environments. After rewiring, perform a point-to-point continuity check before energizing the module.

HMI screen configurations linked to the affected I/O channels — whether running on a HIMA-compatible SCADA platform or a third-party HMI such as a Siemens TP series panel — should be reviewed to confirm that tag addresses remain valid following the connector replacement. No software changes are typically required for a like-for-like Z7108 connector swap, but this verification step is essential in systems where I/O channel mapping has been customized.

Communication link continuity between the Z7000 Series SIS and the distributed control system (DCS) or basic process control system (BPCS) should be confirmed after commissioning. In installations where the HIMA system communicates via Modbus TCP or PROFIBUS DP to a third-party DCS, a brief communication diagnostic using the SILworX online monitoring function will confirm that all safety function inputs and outputs are correctly reported across the system boundary.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing connectors in a live safety instrumented system. The HIMA Z7108 replacement procedure is designed to be completed within a standard maintenance window, provided that pre-work documentation and spare parts are staged in advance.

Where the process safety requirements permit, the affected I/O module should be placed in bypass mode using the HIMA SILworX bypass management function before physical disconnection of the Z7108 connector. This preserves the logical state of the safety function in the controller while the field wiring is transferred to the replacement connector, preventing spurious trips or loss of safety function during the intervention.

Original program logic stored in the HIMA HIMatrix or HIMax controller is not affected by a connector-level replacement. The safety application program, cause-and-effect matrix, and function block configurations remain intact in non-volatile controller memory throughout the procedure. Engineers should nonetheless export a current project backup from SILworX before beginning any physical work on the rack.

After the Z7108 replacement connector is installed and field wiring is re-terminated, a structured commissioning sequence should be followed: restore module power, confirm I/O channel diagnostics in SILworX, release the bypass on the affected safety function, and verify that all field instruments — including pressure transmitters, solenoid valves, and emergency shutdown actuators connected through the Z7000 Series I/O — are responding correctly. Total intervention time for a single connector replacement, including pre-work and post-commissioning verification, is typically achievable within a two-to-four hour maintenance window.

For sites operating under IEC 61511 functional safety management requirements, the connector replacement activity should be documented as a modification to the safety instrumented function, with a post-maintenance proof test conducted in accordance with the site safety requirements specification.

Retrofit Support FAQ

Q1: Is the HIMA Z7108 a direct drop-in replacement for the original connector in Z7000 Series installations?
Yes. The Z7108 is dimensionally and electrically compatible with the Z7000 Series I/O module front connector interface. No mechanical adaptation or wiring modification is required for a like-for-like replacement, provided the field wiring is re-terminated to the same terminal sequence as the original connector.

Q2: What commissioning steps are required after installing the Z7108 replacement connector?
After installation, restore module power and use HIMA SILworX to confirm that all I/O channel diagnostics are clear. Release any active bypass on the affected safety function and perform a functional verification of connected field devices. Document the activity in the site maintenance management system and update the as-built wiring records.

Q3: Can the Z7108 be used in systems where the Z7000 Series communicates with a third-party DCS via PROFIBUS DP or Modbus TCP?
Yes. The Z7108 is a field-side connector and does not affect the communication interface between the HIMA Z7000 Series SIS and any connected DCS or BPCS. Communication link integrity should be verified after commissioning using the SILworX online diagnostic function, but no gateway or protocol configuration changes are required.

Q4: What warranty coverage applies to the HIMA Z7108 supplied by SMARTNEXMSK?
All HIMA Z7108 connectors supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and connector integrity failures under normal operating conditions. Each unit undergoes pre-shipment inspection and functional testing before dispatch. Warranty claims are supported by our technical team with replacement or credit resolution within agreed lead times.
