HIMA Z7150 Retrofit-Ready Field Connector for HIMax HIMatrix HISC

HIMA Z7150 Retrofit-Ready Field Connector for HIMax HIMatrix HISC Safety Systems

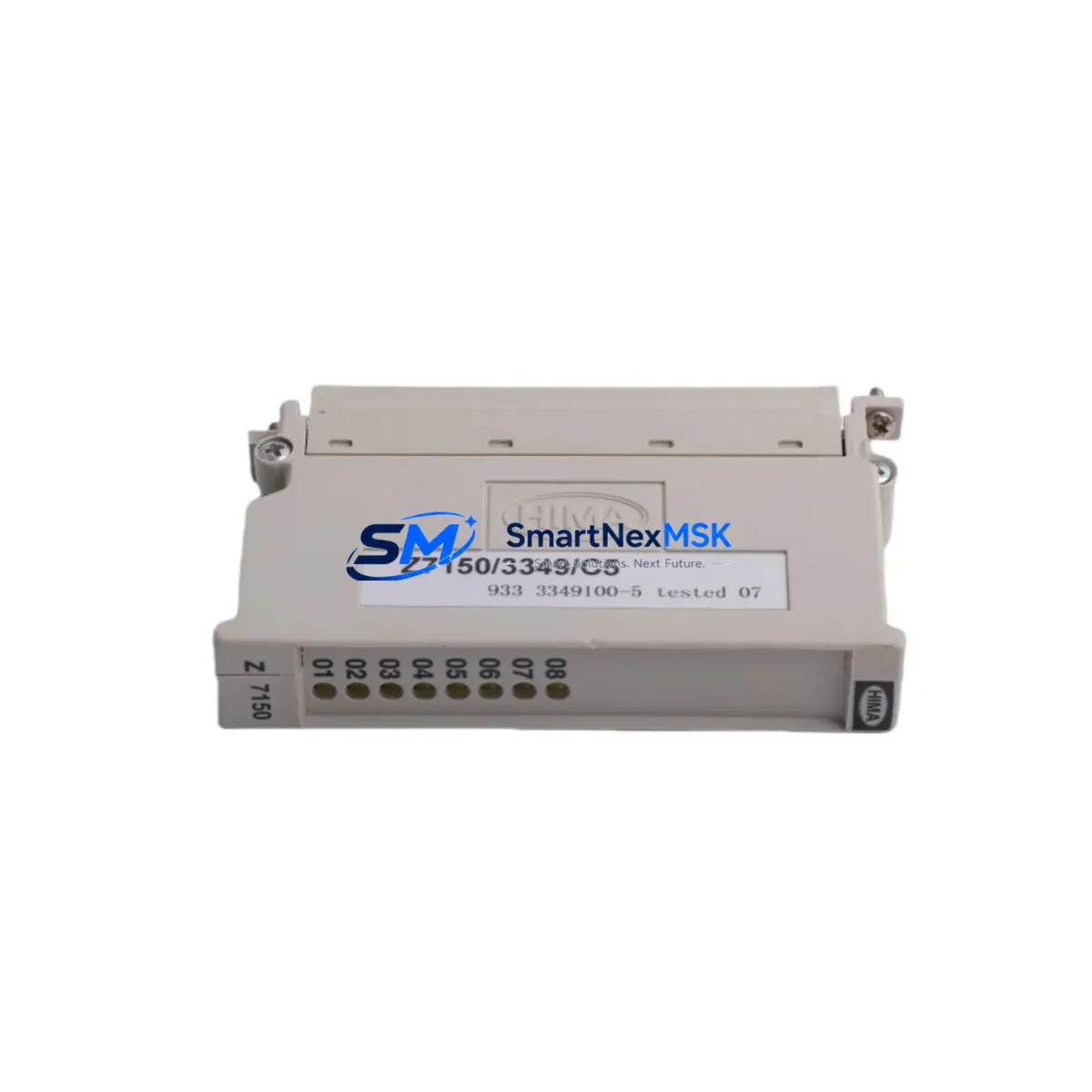

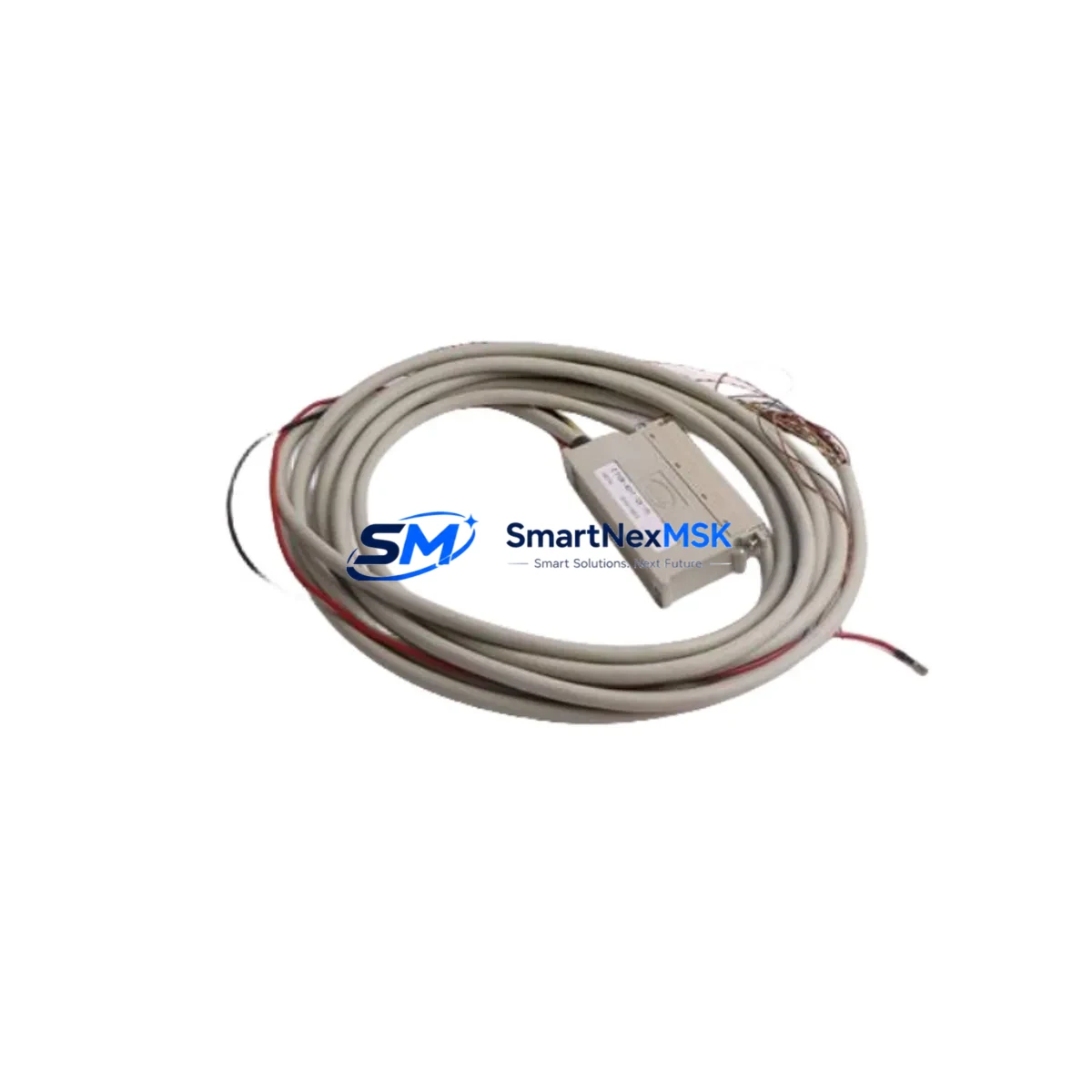

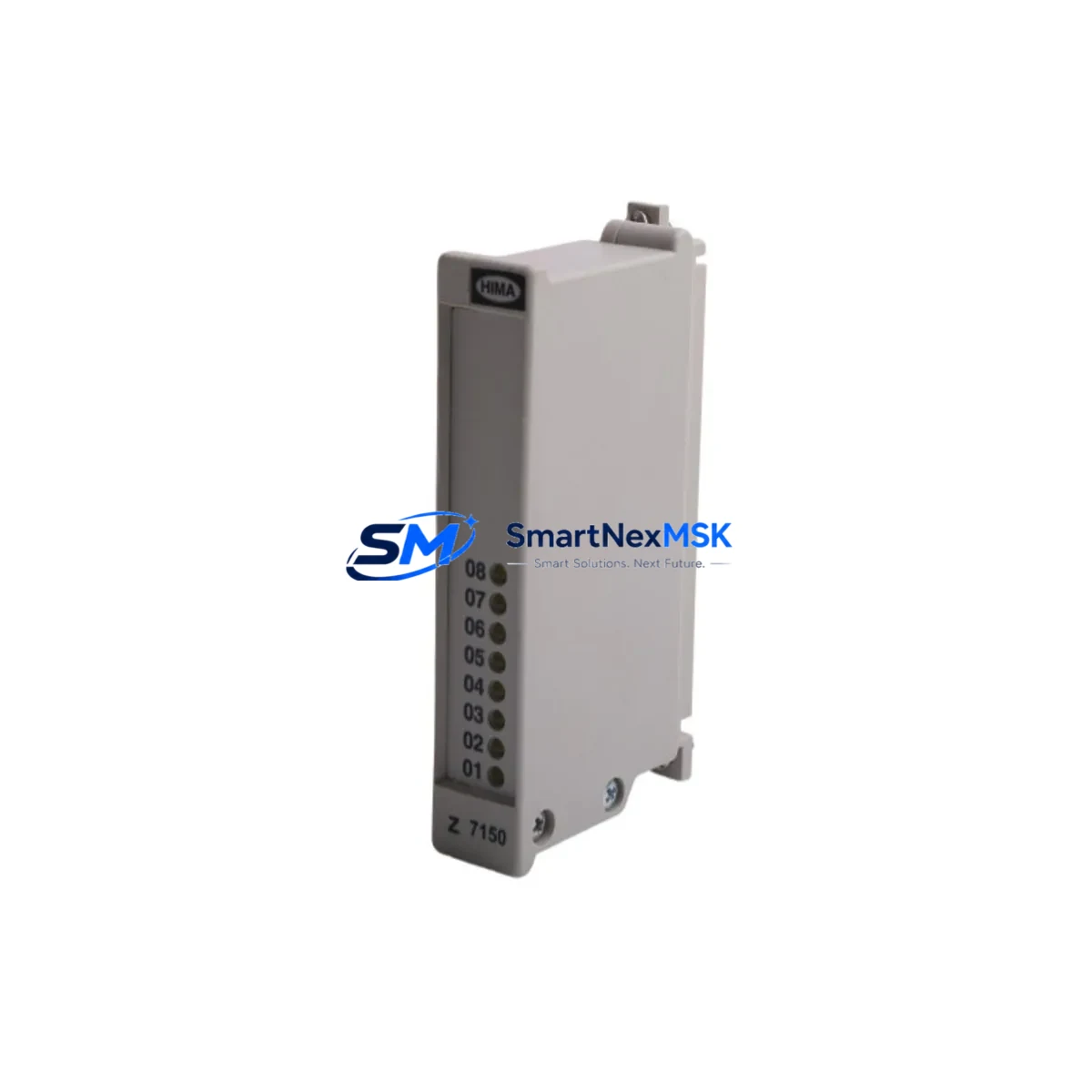

The HIMA Z7150 is a precision-engineered field wiring connector designed for seamless integration into HIMA’s safety instrumented system (SIS) platforms, including the HIMax, HIMatrix, and HISC controller families. As legacy safety systems approach end-of-life or require hardware refresh cycles, the Z7150 serves as a critical interface component enabling engineers to modernize field wiring infrastructure without redesigning the entire control cabinet or replacing the base rack assembly.

For facilities operating aging HIMA F3 DIO 8/8 01 or F3 AIO 8/4 01 I/O modules, the Z7150 connector provides a validated drop-in replacement path that preserves existing terminal assignments and cable routing. This is particularly valuable during partial-upgrade projects where only selected I/O channels are being migrated to newer HIMA F3 DIO 20/8 01 or F3 AIO 8/4 02 modules while the remaining field instruments remain on the original wiring harness.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Z7150 connector retrofit begins well before the maintenance window opens. Engineers should first audit the existing field wiring documentation to confirm cable cross-sections, shielding requirements, and terminal torque specifications. In HIMax installations, the Z7150 interfaces directly with the HIMax I/O sub-module mounted on the central unit rack, meaning the backplane and HIMax Central Unit (CU) remain undisturbed during connector replacement.

For HIMatrix F35 and F60 standalone controllers, the Z7150 connects to the integrated I/O channels on the front face of the controller housing. Before disconnecting the existing connector, engineers should document the current channel-to-terminal mapping using the SILworX engineering tool and export a backup of the active project. This ensures that if any address reassignment occurs during reconnection, the original logic can be restored without re-engineering the safety function.

In control cabinets where the HIMA system shares a 24 VDC power rail with third-party devices such as a Phoenix Contact QUINT power supply or a Weidmüller terminal block assembly, engineers must verify that the total current draw on the shared rail does not exceed the rated output after the new connector is seated. The Z7150 itself draws no additional power, but disturbing the connector during replacement may temporarily interrupt the field circuit, triggering a diagnostic alarm on the HIMA F3 DIO 8/8 01 or adjacent I/O module.

Projects involving communication protocol migration — for example, transitioning from legacy PROFIBUS DP field devices to PROFINET or SafeEthernet (FSoE) — should treat the Z7150 replacement as part of a broader I/O module upgrade. In these cases, the new connector is typically installed alongside a replacement HIMA F3 DIO 20/8 01 digital I/O module or an updated HIMA F3 AIO 8/4 02 analog input module, both of which support the expanded channel density and updated communication stack required for modern SIS architectures.

For HISC (HIMA Integrated Safety Controller) installations, the Z7150 is commonly encountered in legacy gas turbine and compressor control panels where the HISC manages both safety and basic process control functions. Upgrading the field connector in these environments requires coordination with the DCS vendor — often a Yokogawa CENTUM VP or Emerson DeltaV SIS system — to ensure that the HISC’s hardwired I/O signals remain correctly mapped to the DCS historian and alarm management system throughout the replacement procedure.

Where HMI screens are involved, operators should be informed that channel diagnostic indicators on the HIMA SILworX HMI visualization or a connected Siemens WinCC SCADA panel may briefly show a “channel open” or “wire break” fault during the physical connector swap. This is expected behavior and should be acknowledged in the pre-work permit. Once the Z7150 is fully seated and the field cable is re-terminated, the diagnostic status will clear automatically upon the next module scan cycle.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any SIS retrofit involving field wiring components. The Z7150 connector is designed for front-access replacement, which means the HIMax or HIMatrix module does not need to be removed from the rack during the swap. This front-mount architecture allows maintenance teams to complete the connector replacement within a single shift, provided that the field cables have been pre-labeled and the terminal assignment sheet has been verified against the as-built drawings.

For safety-critical loops operating under IEC 61511 requirements, the replacement should be performed under a Management of Change (MOC) procedure with a formal bypass authorization. HIMA’s redundant I/O architecture — available on HIMax systems with 1oo2D or 2oo3 voting configurations — allows one channel to be taken offline for connector replacement while the remaining channels continue to monitor the field instrument. This approach eliminates the need for a full process shutdown in most applications.

Before closing the work permit, the commissioning engineer should perform a point-to-point continuity check on each re-terminated field cable, confirm that the module’s LED diagnostic indicators show “OK” status, and verify that the SILworX online diagnostic view reports no active faults on the affected channels. A functional test of the safety function — including a simulated trip signal from the field transmitter — should be completed and documented before the bypass is removed and the safety loop is returned to service.

All replacement connectors supplied by SMARTNEXMSK are shipped with a factory test report confirming contact resistance, insulation integrity, and mechanical retention force. Each Z7150 unit carries a 12-month warranty covering manufacturing defects and contact failure under normal operating conditions.

Retrofit Support FAQ

Q1: Is the Z7150 a direct drop-in replacement for the original HIMA OEM connector?
Yes. The Z7150 is dimensionally and electrically equivalent to the original HIMA factory connector. It uses the same pin pitch, locking mechanism, and contact rating, ensuring a tool-free, drop-in fit on all compatible HIMax, HIMatrix, and HISC module variants without any modification to the module housing or field cable.

Q2: Do I need to re-download the safety program after replacing the connector?
No. Replacing the Z7150 field wiring connector does not affect the program memory stored in the HIMA CPU or the configuration held in the SILworX project. However, it is best practice to perform an online diagnostic check in SILworX after reconnection to confirm that all channel statuses have returned to normal and no residual fault codes are present.

Q3: What wiring checks should be completed before and after the connector swap?
Before removal: photograph or document the existing terminal-to-channel mapping, verify cable labels match the as-built drawing, and confirm the bypass authorization is in place. After installation: perform a continuity check on each conductor, verify shield grounding continuity, confirm the module LED shows green, and execute a functional test of the associated safety function before releasing the bypass.

Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects, contact corrosion under normal industrial conditions, and mechanical retention failure. To initiate a claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement units are dispatched within 3 business days of claim approval, and a return shipping label is provided for the defective connector.
