Honeywell BXA3K-1A BXM4N Spare for BX Series Automation

Honeywell BXA3K-1A BXM4N Spare for BX Series Automation

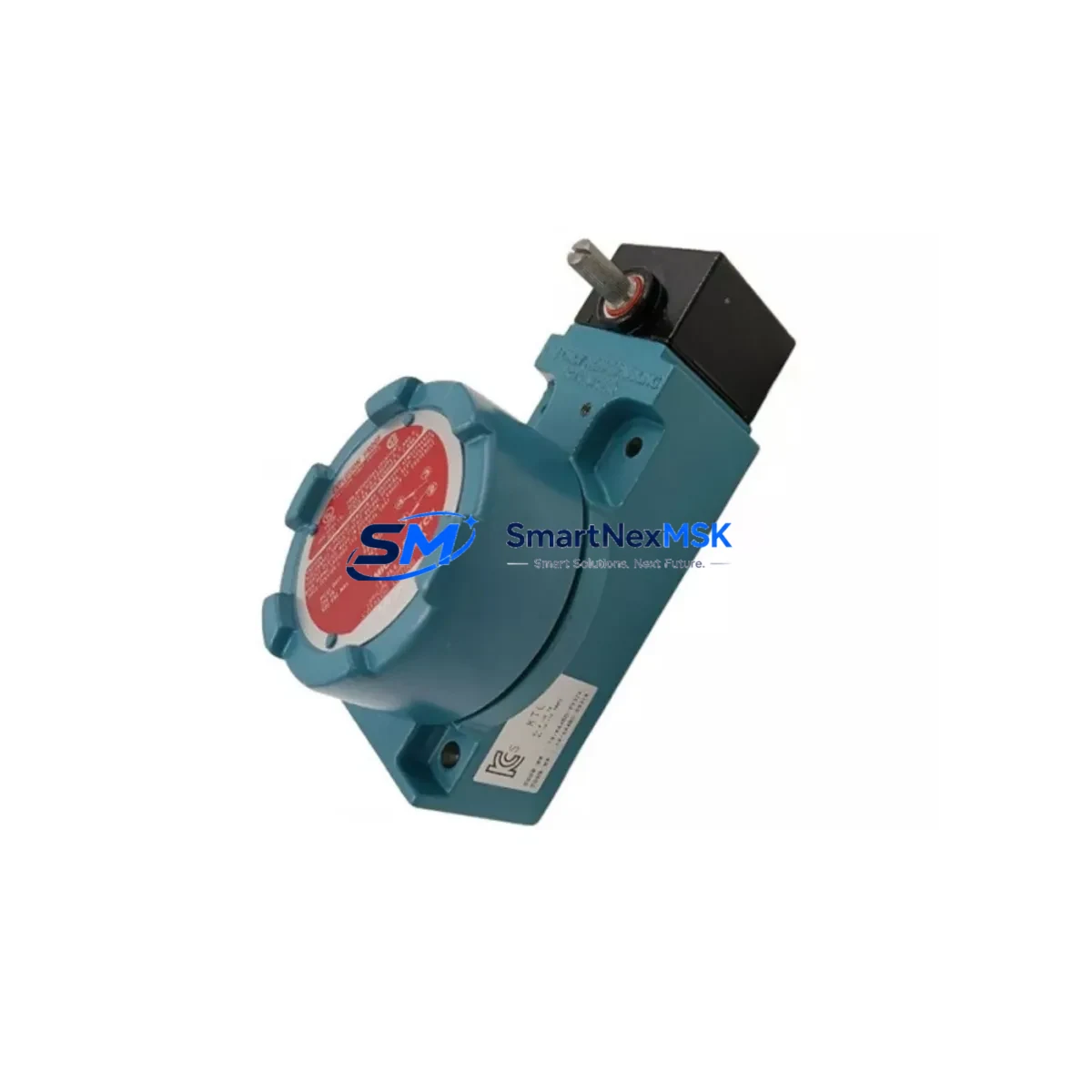

The Honeywell BXA3K-1A BXM4N is an original explosion-proof limit switch from the MICRO SWITCH BX Series, engineered for demanding industrial automation environments where safety, reliability, and rapid spare-parts availability are non-negotiable. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a proactive spare parts inventory for a hazardous-area control cabinet, this unit delivers the electrical performance and mechanical durability that maintenance and procurement engineers depend on.

Designed for use in Class I, Division 1 and Division 2 hazardous locations, the BXA3K-1A BXM4N integrates directly into existing BX Series wiring harnesses and conduit entries without modification. Its SPDT snap-action contact mechanism provides repeatable, low-bounce switching across the full rated temperature range, making it a trusted choice for position sensing on actuators, valve stems, conveyor gates, and safety interlocks in petrochemical, pharmaceutical, and heavy manufacturing facilities.

At SMARTNEXMSK, every BXA3K-1A BXM4N unit is sourced from authorized distribution channels, inspected before dispatch, and shipped with full documentation. Our 12-month warranty covers manufacturing defects and ensures your maintenance team can proceed with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BXA3K-1A BXM4N limit switch is flagged during a routine control cabinet inspection or a fault-isolation walkdown, experienced maintenance engineers know that the switch itself is rarely the only component that warrants attention. A thorough replacement procedure should include a parallel check of the associated wiring and upstream/downstream components to prevent repeat failures and reduce the risk of a second unplanned shutdown.

Start with the conduit seal and cable gland at the BXM4N head entry point. Degraded seals are a leading cause of moisture ingress in explosion-proof enclosures and can compromise both the switch and the connected signal cable. Inspect the multi-conductor shielded signal cable running from the switch back to the marshalling panel for insulation damage, especially at bends and clamp points.

At the panel end, verify the 24 VDC or 120 VAC control power supply module feeding the limit switch circuit. A marginal power supply can cause intermittent contact chatter that mimics a faulty switch. Check the associated input relay or interposing relay — in many BX Series installations, the switch output drives a DIN-rail relay before entering the PLC or DCS I/O card. Relay contact wear is a common co-failure mode.

On the I/O side, inspect the discrete input module (typically 24 VDC DI) in the PLC or DCS rack. Confirm channel status via the diagnostic LED and compare against the field signal. If the installation uses a signal isolator or safety barrier (Zener or galvanic) between the hazardous area and the safe-area I/O, test the barrier for correct voltage clamping and continuity. Faulty barriers are frequently overlooked during limit switch replacements.

Check the terminal block strip in the junction box or marshalling cabinet for loose screws, corrosion, or ferrule pull-out — particularly on the common (COM) and normally-closed (NC) terminals, which carry continuous current in many safety interlock designs. If the circuit includes a fuse or miniature circuit breaker protecting the switch loop, verify its rating matches the design specification and replace if the element shows signs of thermal stress.

For installations where the BXA3K-1A BXM4N feeds a safety function, confirm that the associated safety relay module or SIL-rated I/O card has been reset and its self-test diagnostics have passed before returning the loop to service. Finally, update the HMI faceplate status tag and confirm that the SCADA historian is logging the correct engineering-unit value for the position signal — a misconfigured tag can mask a wiring error for weeks before it causes a process upset.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a Permit to Work, isolate the hazardous area circuit at the local isolator or MCC, and verify zero-energy state with an approved voltage tester.

Step 2 — Document as-found condition: Photograph the existing BXA3K-1A BXM4N wiring, conduit entry orientation, and actuator alignment before removal. Record the as-found contact resistance and insulation resistance if test equipment is available.

Step 3 — Remove and inspect: Unscrew the BXM4N conduit entry, disconnect the three-wire termination (COM, NO, NC), and remove the switch body. Inspect the actuator plunger travel and the mounting bracket for deformation.

Step 4 — Install replacement unit: Mount the new BXA3K-1A BXM4N to the existing bracket using the original bolt pattern. Reconnect wiring to the same terminal designations. Re-seal the conduit entry with an approved compound rated for the site’s hazardous area classification.

Step 5 — Functional test: With the permit still active, apply control power and manually actuate the plunger. Confirm NO/NC state changes at the PLC/DCS I/O channel and at the HMI. Verify that the interposing relay picks up and drops out correctly.

Step 6 — Return to service: Close the permit, update the maintenance management system (CMMS) with the replacement record, and log the new unit’s serial number for warranty tracking. Replenish the consumed spare to maintain minimum stock level.

This workflow is compatible with direct replacement of legacy BX Series variants including BXA2K, BXA4K, and BXR2 body styles paired with BXM4N, BXM6N, or BXM8N conduit heads, minimizing engineering review time for like-for-like substitutions.

Spare Parts Support FAQ

Q1: What is the recommended minimum stock quantity for BXA3K-1A BXM4N in a continuous-process plant?
A: For facilities with more than five BX Series limit switches in safety or interlock service, SMARTNEXMSK recommends holding a minimum of two units on-site. Plants with longer lead times from their primary supplier or with critical single-point-of-failure positions should consider three to five units. Our long-term supply program allows you to reserve stock at a fixed price for up to 12 months.

Q2: How do I verify compatibility before installation if my existing switch has a different suffix?
A: The BXA3K-1A body is compatible with all standard BXM4N conduit heads and shares the same bolt pattern and plunger travel as BXA2K-1A and BXA4K-1A variants. Cross-reference the original nameplate data against the Honeywell BX Series selection guide. If you are uncertain, contact our technical team at sales@smartnexmsk.com with the nameplate photo and we will confirm compatibility before shipment.

Q3: What pre-shipment testing does SMARTNEXMSK perform on each unit?
A: Every BXA3K-1A BXM4N is tested for contact continuity (NO and NC), insulation resistance (≥100 MΩ at 500 VDC), and mechanical actuation force before packaging. Units are shipped in anti-static, moisture-barrier packaging with a test record included. The 12-month warranty period begins from the date of shipment.

Q4: Can SMARTNEXMSK support emergency same-day or next-day dispatch for unplanned shutdowns?
A: Yes. For in-stock units, we offer priority dispatch with same-day processing for orders confirmed before 14:00 CST. Contact us directly at +86 18259474341 or sales@smartnexmsk.com to confirm stock availability and arrange expedited freight. We maintain buffer stock of high-rotation BX Series spares specifically to support emergency maintenance scenarios.
