Honeywell C7061A1020 Spare for C7061 Series Automation: Burner Safety Spare Parts & Downtime Risk Control

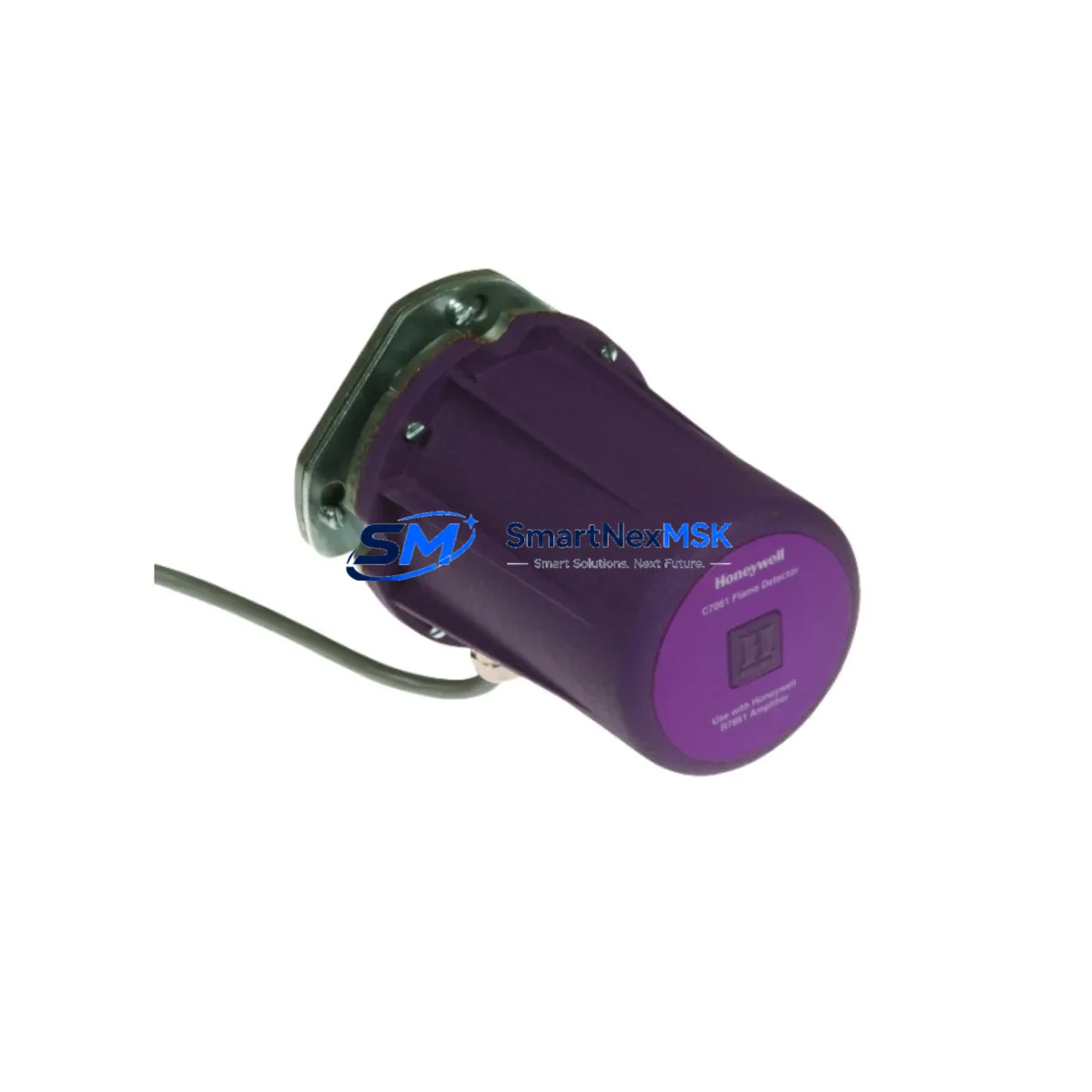

The Honeywell C7061A1020 is an original UV flame detector designed for continuous flame supervision in industrial combustion systems. As a maintenance-ready spare for the C7061 Series, this unit supports rapid field replacement in burner management systems (BMS), boiler control panels, and process heater installations where unplanned downtime carries significant operational and safety risk. Sourced as an original Honeywell component, the C7061A1020 is tested prior to shipment and backed by a 12-month warranty, making it a reliable choice for both planned maintenance stock and emergency replacement scenarios.

For maintenance engineers managing combustion control infrastructure, having a verified spare of the C7061A1020 on hand eliminates the lead-time risk associated with flame detector failures. UV flame detectors are critical safety components — their failure triggers burner lockout, halting production until the fault is cleared and the system is safely restarted. Stocking this spare as part of a proactive maintenance program directly reduces mean time to repair (MTTR) and supports continuous operation across shift cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the C7061A1020 UV flame detector during a planned or corrective maintenance event, a thorough inspection of the surrounding burner management circuit is strongly recommended. Flame detector failures rarely occur in isolation — associated components in the same control loop often show signs of wear or degradation that, if left unaddressed, will cause repeat faults or nuisance trips.

Maintenance engineers should verify the condition of the Honeywell R7847 or R7848 flame amplifier, which processes the UV signal from the C7061A1020 and drives the burner control relay. A degraded amplifier can cause intermittent flame signal loss even with a new detector installed. Similarly, the RM7800 Series burner control module — the primary safety logic controller in many installations — should be checked for fault history, relay contact wear, and terminal integrity before returning the system to service.

Inspect the 24 VDC or 120 VAC power supply feeding the flame scanner circuit for voltage stability and ripple, particularly in older control cabinets where capacitors may have aged. Loose or corroded wiring at the terminal blocks connecting the detector to the amplifier is a common source of intermittent flame signal faults and should be re-torqued and inspected for insulation degradation during every replacement event.

If the installation includes a signal isolator or signal conditioner between the flame amplifier output and the DCS or PLC input card, verify that the isolator is functioning within its specified output range. Faulty signal isolation can cause the control system to misread flame status, leading to spurious shutdowns. For systems integrated with a Honeywell HC900 or Experion PKS DCS, confirm that the analog or digital input channel assigned to the flame signal is reading correctly after replacement.

Check the sight pipe and UV lens assembly for soot accumulation, lens crazing, or physical damage — a contaminated optical path will attenuate the UV signal and reduce detector sensitivity even with a new C7061A1020 installed. In high-fouling environments, consider adding a purge air connection to the sight pipe. Also inspect the burner ignition transformer and ignition electrode for wear, as ignition system faults can prevent flame establishment and mask detector performance issues during commissioning.

For facilities maintaining a spare parts inventory, it is advisable to stock the C7061A1020 alongside the R7847 flame amplifier, a compatible terminal block set, and at least one spare RM7800 Series control module to cover the most common failure modes in a single burner management loop. This approach minimizes diagnostic time during emergency callouts and supports a structured planned maintenance interval aligned with annual boiler inspection schedules.

Site Replacement Workflow

The C7061A1020 is a direct replacement for earlier C7061 Series UV flame detectors, including legacy variants used in older Honeywell Minipeac and Fireye-compatible burner control panels. Before installation, confirm the sight pipe thread size and detector mounting orientation match the existing installation. Dual-voltage design (120/230 V AC) eliminates the need for voltage-specific ordering, simplifying procurement for multi-site maintenance teams managing both North American and European standard installations.

During replacement, de-energize the burner control circuit and lock out the ignition system before disconnecting the detector. Label and photograph existing wiring before removal. After installing the C7061A1020, perform a flame signal check using the amplifier’s signal strength indicator or a calibrated UV test lamp to verify detector sensitivity before returning the burner to automatic operation. Document the replacement in the equipment maintenance log and update the spare parts inventory accordingly.

For systems that have been in service for more than 10 years, this replacement event is also an appropriate time to assess whether the overall burner management system meets current IEC 61511 or NFPA 85 safety integrity requirements, and whether a broader control system upgrade should be planned to extend system service life and maintain regulatory compliance.

Spare Parts Support FAQ

Q1: Is the C7061A1020 compatible with all C7061 Series burner control installations?
The C7061A1020 is compatible with standard C7061 Series sight pipe mounting configurations and is designed to interface with Honeywell R7847, R7848, and RM7800 Series flame amplifiers and burner controls. For non-standard installations or legacy panel configurations, verify the wiring diagram and amplifier model before ordering. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What is included in the 12-month warranty and how does it apply to field replacements?
All C7061A1020 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is function-tested before dispatch. In the event of a warranty claim, we provide replacement or refund based on fault verification. Warranty does not cover damage resulting from incorrect installation, overvoltage, or contamination.

Q3: How should the C7061A1020 be stored as a long-term spare?
Store the detector in its original packaging in a dry, temperature-controlled environment (10°C to 40°C, <75% RH, non-condensing). Avoid storage near strong UV sources, solvents, or electromagnetic interference. Inspect the UV sensing window for contamination before installation if the unit has been stored for more than 12 months. Long-term storage does not affect warranty validity from the date of shipment.

Q4: Can SMARTNEXMSK supply multiple units for a planned maintenance shutdown or multi-site procurement?
Yes. We maintain stock of the C7061A1020 and related C7061 Series components to support both single-unit emergency replacements and bulk procurement for planned shutdowns or site-wide spare parts standardization programs. Contact our sales team at sales@smartnexmsk.com for volume pricing, lead time confirmation, and consolidated shipment arrangements.
